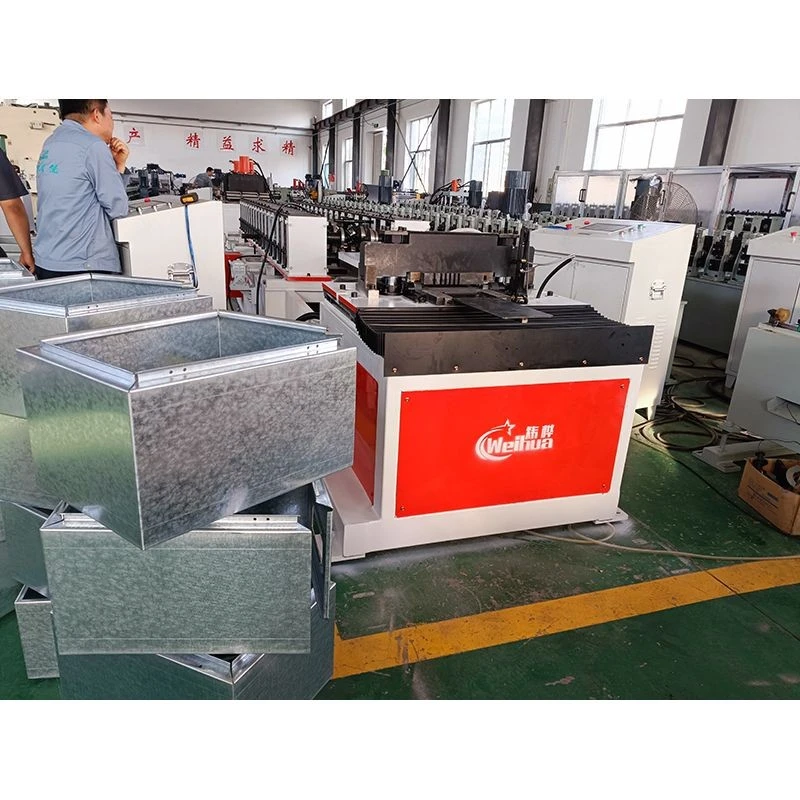

Electric Meter Box Production Line

The Electric Meter Box Production Line is a fully automated production line specifically designed for one-piece molding of electric meter boxes. Electric meter boxes are primarily used to install electricity metering instruments and related switching components, and are widely used in residential buildings, commercial buildings, and rural power grid upgrades. The entire line integrates uncoiling, leveling, servo feeding, continuous punching, high-precision roll forming, length cutting, and automatic bending processes, achieving continuous, fully automated production from steel coil to finished product. Only one operator is required, and it can produce two boxes per minute, with a daily output of 1000-1200 units. The equipment supports free adjustment of the box's length, width, and height, allowing a single production line to produce multiple specifications. Non-standard customization is also available according to customer requirements, meeting the mass production and flexible manufacturing needs of power grid projects and the civilian market.

Send Inquiry

Technical Specifications

Product Name	Electric Meter Box Production Line
Material Specifications	Q235 cold-rolled strip steel, galvanized strip steel
Material Thickness	0.6→1.2mm (customizable)
Production Speed	2 pieces/minute
Production Specifications	Box Size: 250300--8001000 (customizable)
Box Depth	Customizable
Voltage Parameters	380V/415V, 50Hz, 3-phase
Air Source	0.5m³/Min; Pressure: 0.7MPa
Roll Material	Cr12 CNC machined; quenched to HRC58°-60° hardness
Drive Motor	Variable frequency motor drive
Total Motor Power	25kw
Cutting Die Material	Cr12MoV
Transmission Mode	Gearbox
Cutting Method	Hydraulic cutting
Cutting Dimension Tolerance	≤ ±0.5mm (Length ≤1000mm)
Operating System	Touchscreen HMI
Electrical Control	Mitsubishi PLC program control
Footage Space	2023 meters (Length×Width×Height)

Product Advantages

Integrated Process, One-Step Forming

This equipment integrates continuous punching, high-precision roll forming, length cutting, and automatic bending into a single unit, directly processing steel coils into four-sided enclosed distribution box bodies in one go, eliminating the cumbersome steps of multiple handling and intermediate storage in traditional segmented processing.

One-Man Operation, High-Efficiency Output

The equipment operates at a speed of 2 boxes per minute, producing 1000-1200 units per day. The entire forming process can be completed by a single operator, significantly reducing reliance on manual labor while maintaining stable and efficient batch production capabilities.

Precise Mounting Plate Positioning Holes

The equipment can pre-set mounting plate fixing holes on the back or bottom plate of the box body according to the installation dimensions of the meters and switch components, ensuring precise matching with standard meter mounting plates, guide rails, and switch modules. Component installation is time-saving and labor-saving, eliminating the need for customers to drill themselves.

Factory photos

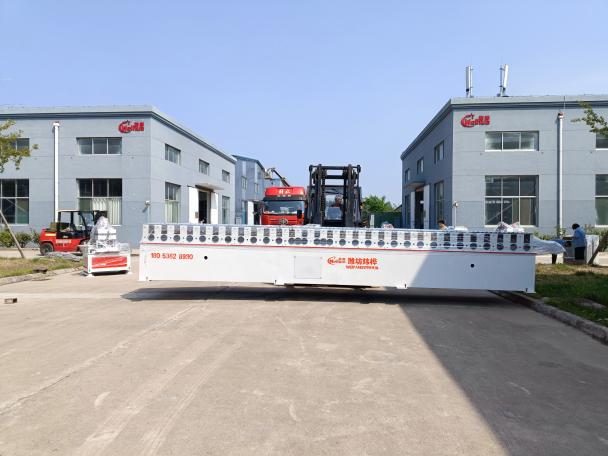

Shipping photos

Customer visit

FAQ

Q: Are you a factory or a trading company?

A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.

Q: Can the production line produce multi-position meter boxes?

A: Yes. By adjusting the width and height parameters of the box, the equipment can produce meter boxes with different numbers of meter positions, such as single-position, double-position, four-position, and six-position. Within the same width specification, different meter position outputs can be achieved by adjusting the configuration of the internal partitions and mounting plates, without replacing the main unit or adding extra molds, significantly reducing the overall cost of multi-variety production.

Q: How are the edges of the viewing window after opening processed?

A: The stamping system uses precision cutting and punching processes, resulting in smooth, burr-free opening edges that require no secondary deburring.
