Technical Specifications
|
Product Name |
Electrical Distribution Box Manufacturing Machine |
|
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
|
Material Thickness |
0.6→1.2mm (customizable) |
|
|
Production Speed |
2 pieces/minute |
|
|
Production Specifications |
Box Size: 250*300--800*1000 (customizable) |
|
|
Box Depth |
Customizable |
|
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
|
Air Source |
0.5m³/Min; Pressure: 0.7MPa |
|
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
|
Drive Motor |
Variable frequency motor drive |
|
|
Total Motor Power |
25kw |
|
|
Cutting Die Material |
Cr12MoV |
|
|
Transmission Mode |
Gearbox |
|
|
Cutting Method |
Hydraulic cutting |
|
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
|
Operating System |
Touchscreen HMI |
|
|
Electrical Control |
Mitsubishi PLC program control |
|
|
Footage Space |
20*2*3 meters (Length×Width×Height) |
|
Product Advantages
- One-person operation, high-efficiency output: The equipment operates at a speed of 2 boxes per minute, producing 1000-1200 units per day. Only one person is needed to operate the entire forming process, significantly reducing reliance on manual labor while maintaining stable and efficient batch production capabilities.
- Rigid structure, durable precision: The main unit features a heavy-duty frame design and is equipped with precision-ground rollers. This rigid structure effectively suppresses vibration and deformation during high-speed operation, ensuring consistently stable box dimensional accuracy and good batch-to-batch consistency during mass production.

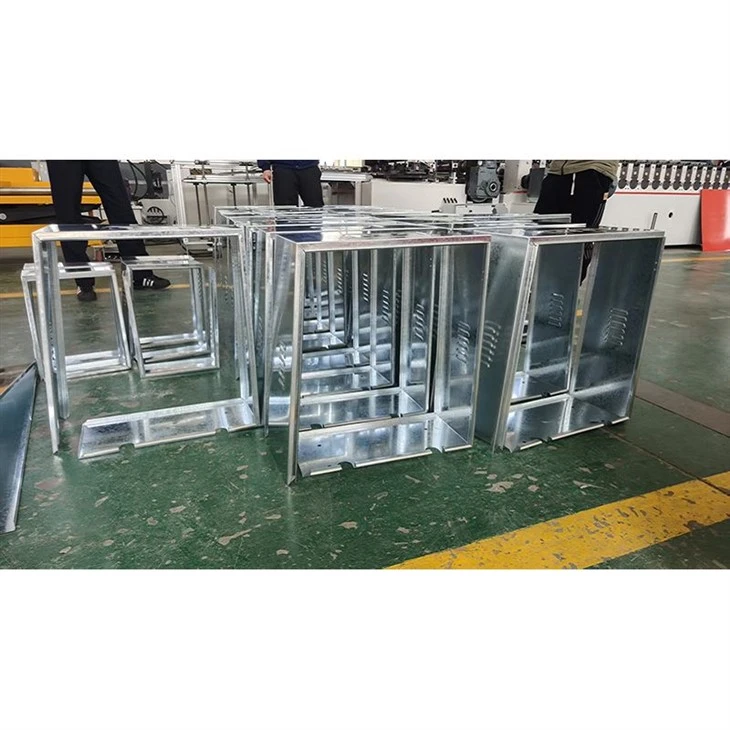

- Multi-purpose, flexible switching: The equipment supports freely adjustable box sizes, and the punching dies can be quickly replaced to achieve different wiring hole configurations. One main unit can be used to produce various types of boxes, including base boxes, power boxes, construction site boxes, PZ30 circuit boxes, charging pile protection boxes, and photovoltaic combiner boxes, making it suitable for manufacturing companies undertaking diverse orders.
- Non-standard customization, flexible response: Non-standard specifications can be customized according to customer requirements, including special box sizes, irregular wiring holes, and different sheet thicknesses, fully meeting personalized order needs.

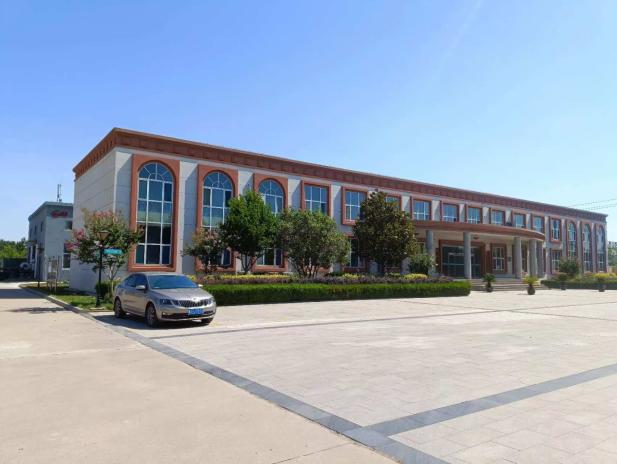

Factory photos

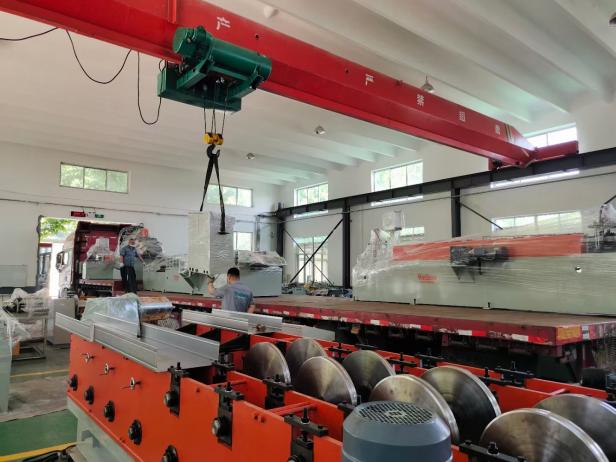

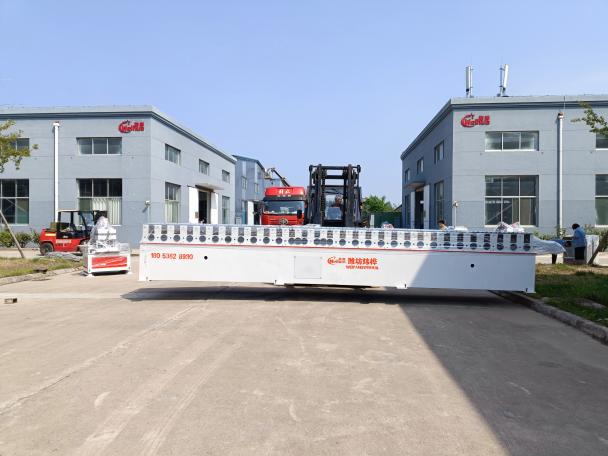

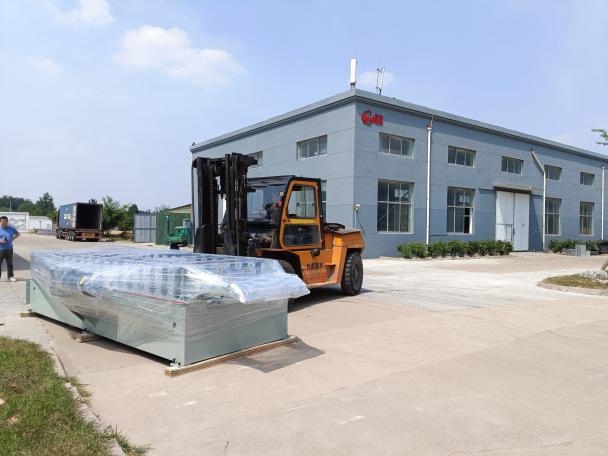

Shipping photos
Customer visit
FAQ
Q. Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: How long is your delivery time?
A: For full container, factory lead time About 35~40 days.
Q: what's your payment terms and trade terms?
A: Accepted Delivery Terms: FOB, CFR, CIF, CIP, FCA, CPT, Express Delivery, DAF.
Q: How many distribution boxes can this production line produce per day?
A: Under stable operating conditions, the daily production capacity is 1000-1200 boxes, corresponding to a production speed of approximately 2 boxes per minute. Actual daily output will be affected by auxiliary time such as raw material changes and mold switching, but the overall efficiency is far higher than traditional segmented processing.
Q: What types of distribution boxes can this production line produce?
A: It can mold multiple types of boxes in one piece, including: base boxes, power boxes, construction site boxes, PZ30 circuit boxes, charging pile protection boxes, photovoltaic combiner boxes, etc., covering civil, commercial, and industrial applications.
