Technical Specifications
|
Product Name |
Electrical Distribution Box Production Line |
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
Material Thickness |
0.6→1.2mm (customizable) |
|
Production Speed |
2 pieces/minute |
|
Production Specifications |
Box Size: 250*300--800*1000 (customizable) |
|
Box Depth |
Customizable |
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
Air Source |
0.5m³/Min; Pressure: 0.7MPa |
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
Drive Motor |
Variable frequency motor drive |
|
Total Motor Power |
25kw |
|
Cutting Die Material |
Cr12MoV |
|
Transmission Mode |
Gearbox |
|
Cutting Method |
Hydraulic cutting |
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
Operating System |
Touchscreen HMI |
|
Electrical Control |
Mitsubishi PLC program control |
|
Footage Space |
20*2*3 meters (Length×Width×Height) |
Product Advantages
- Ultimate Cost Reduction and Efficiency Improvement, Freeing Up Manpower: The entire production line requires only one operator to complete the entire process from raw material to finished product. One machine can replace the workload of 20-30 workers in the traditional model, significantly alleviating the problems of labor shortages and high labor costs.
- Leap in Production Efficiency and Strong Capacity: The equipment can operate at a speed of up to 2 boxes per minute, with a stable daily production capacity of 1000-1200 units. Compared to traditional segmented sheet metal processing, overall production efficiency can be increased by more than 3 times, and the efficiency of individual processes can even be increased by 5-10 times, helping companies achieve a leap in production capacity under the same space and personnel conditions.
- Multi-functional, Flexible to Meet Non-standard Needs: The production line supports free adjustment of the box's length, width, and height, and can customize the punch type and quantity according to customer needs to punch different threading holes. This means that one production line can be compatible with the production of multiple products, quickly responding to diverse market demands and customers' non-standard customization needs.

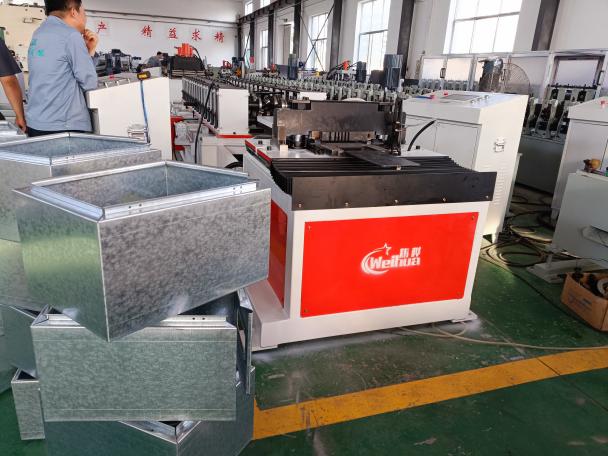

Factory photos

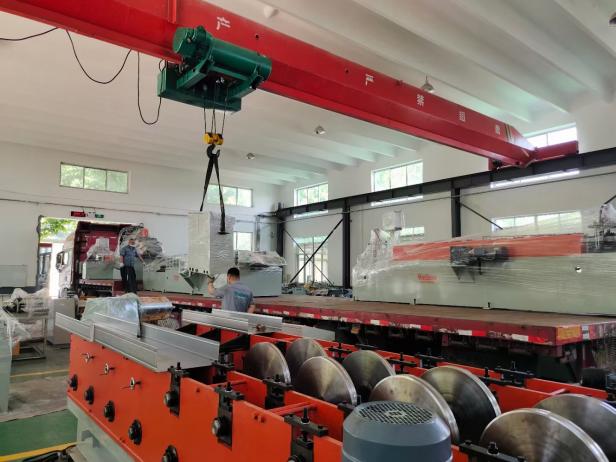

Shipping photos
Customer visit
FAQ
Q. Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: How long is your delivery time?
A: For full container, factory lead time About 35~40 days.
Q: What's your payment terms and trade terms?
A: Accepted Delivery Terms: FOB, CFR, CIF, CIP, FCA, CPT, Express Delivery, DAF.
Q: How many distribution boxes can this production line produce per day?
A: Under stable operating conditions, the daily production capacity is 1000-1200 boxes, corresponding to a production speed of approximately 2 boxes per minute. Actual daily output will be affected by auxiliary time such as raw material changes and mold switching, but the overall efficiency is far higher than traditional segmented processing.
Q: What types of distribution boxes can this production line produce?
A: It can mold multiple types of boxes in one piece, including: base boxes, power boxes, construction site boxes, PZ30 circuit boxes, charging pile protection boxes, photovoltaic combiner boxes, etc., covering civil, commercial, and industrial applications.
