Fire Cabinet Manufacturing Equipment

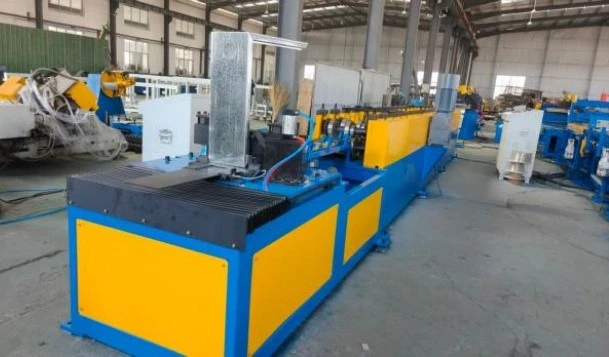

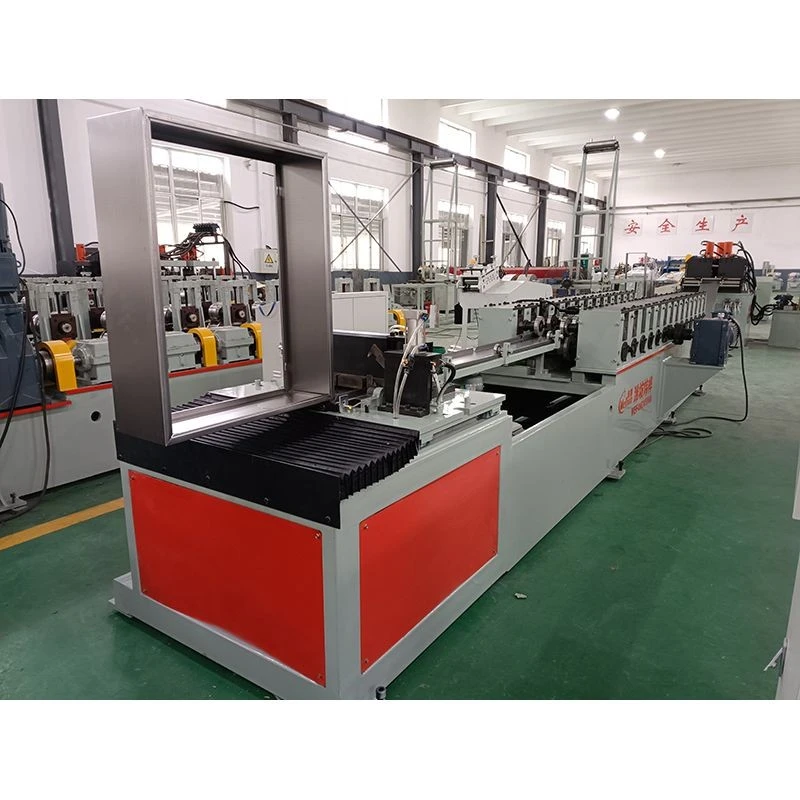

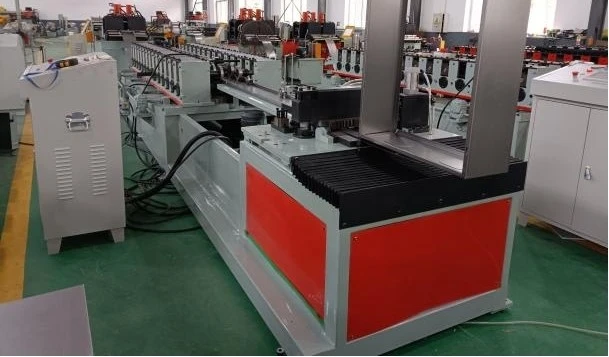

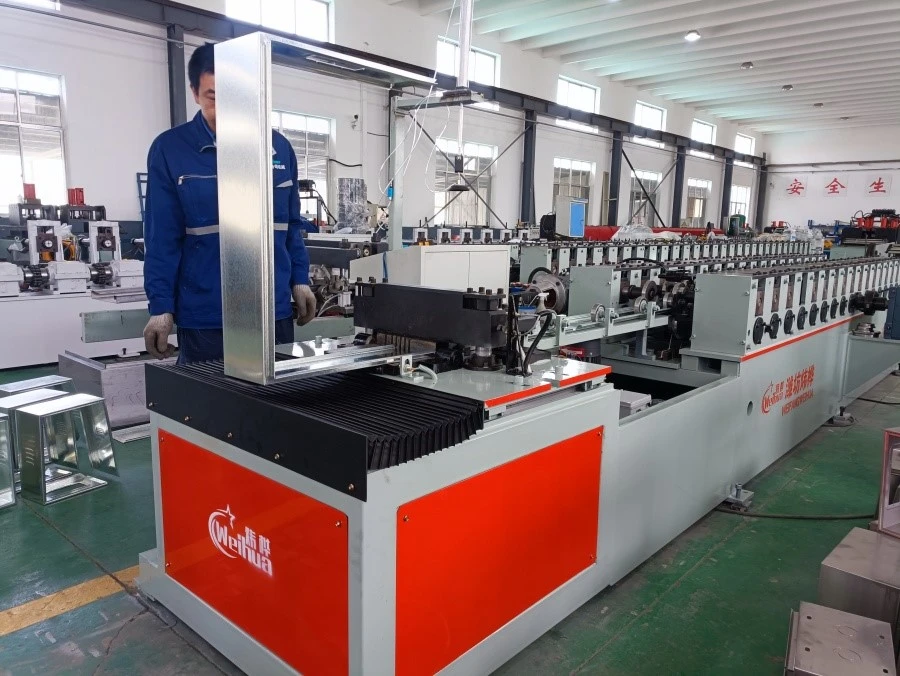

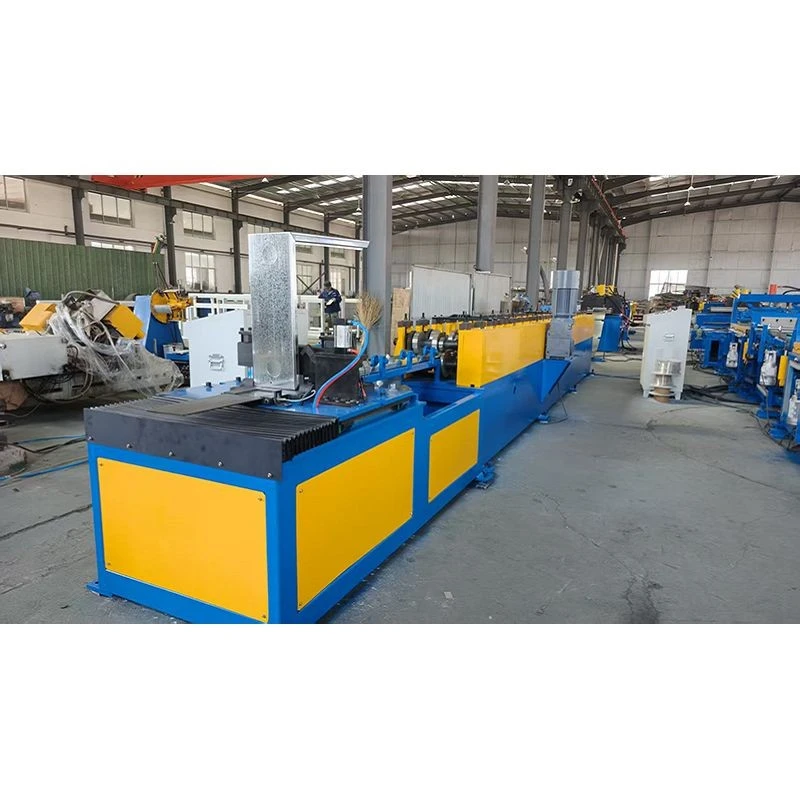

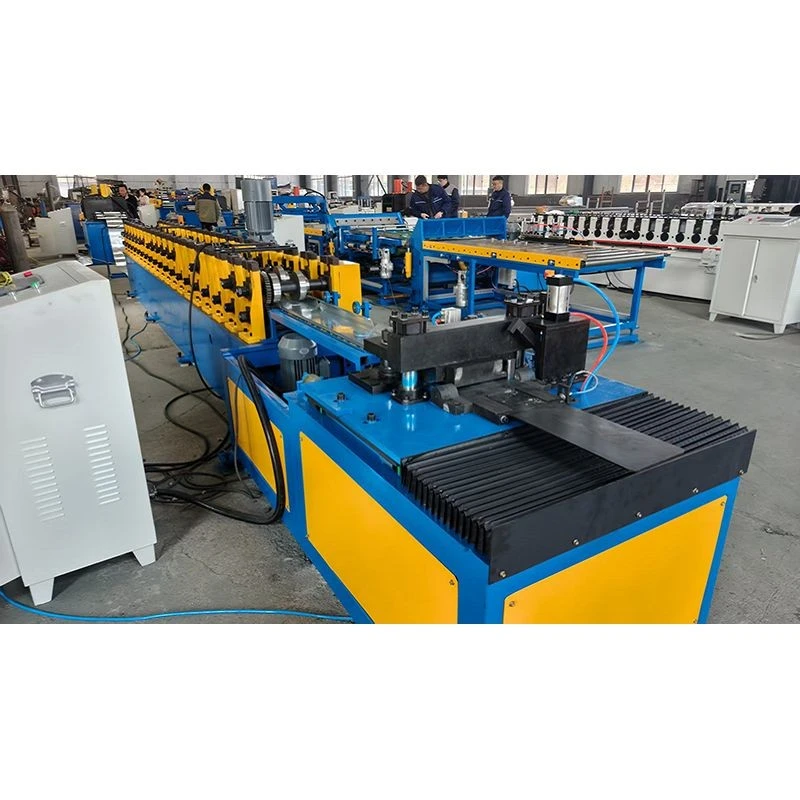

Fire Cabinet Manufacturing Equipment is the core forming machine of the fire cabinet production line, responsible for the crucial task of directly processing steel strips into the four-sided frame of the fire cabinet. This equipment integrates automatic corner trimming, servo feeding, continuous punching, high-precision cold bending forming, hydraulic cutting, and automatic frame folding, making it the core section of the entire production line. The equipment is driven by a servo control system and possesses several national patented technologies, including high-precision cold bending forming. It is equipped with a Mitsubishi PLC control system and a touchscreen human-machine interface.
Technical Specifications
|
Product Name |
Fire Cabinet Manufacturing Equipment |
|
|
Daily production capacity |
1000 fire extinguisher boxes |
|
|
Land area |
Approximately 50 square meters |
|
|
The equipment mainly consists of |
a feeding device, a leveling device, an automatic feeding device, a continuous punching device, a high-precision cold bending forming machine, a length-cutting device, an automatic frame-folding device, and an electrical control system. |
|
|
Main functions |
Automatic corner trimming, servo automatic punching, automatic material feeding, automatic forming, and automatic frame folding. |
|
|
Fire extinguisher box production line equipment manufacturing process |
Feeding system-Leveling machine-Servo feeding system-Punching system-Forming machine-Hydraulic blocking-Active frame-folding system-Material receiving-Robot active welding, electrical system, etc. |
|
|
Fire extinguisher box production line equipment floor area |
21.5*2.0*1.8 (Length*Width*Height) |
|
|
Power supply standard |
380V/3 phase |
|
|
Roll Material |
Cr12 CNC machined; quenched to a hardness of HRC58°-60° |
|
|
Power |
Approximately 27kw |
|
|
Production speed |
Approximately 110 boxes/hour (Specific products are customized according to the plan) |
|
Product Advantages
Independent Integration, One Machine Replaces Multiple Traditional Equipment
This equipment highly integrates automatic corner trimming, servo punching, cold bending, hydraulic cutting, and automatic frame folding into one unit. A single main unit can complete all the work that would traditionally require multiple independent machines such as shearing machines, punching machines, bending machines, and corner trimming machines, significantly reducing equipment investment and workshop space requirements.
Patented Cold Bending Technology + Servo Control, Industry-Leading Forming Precision
The servo control system achieves precise closed-loop control of the feeding step distance and forming position. Combined with high-precision cold bending forming national patent technology, it ensures consistent dimensions of all frame edges, accurate bending angles, and seamless corner connections. The equipment boasts multiple national patents, high forming precision, excellent box squareness, and mechanical strength superior to traditional welding methods.
Automatic Corner Trimming and Frame Folding Integrated, Eliminating Secondary Clamping Errors
The automatic corner trimming process and subsequent frame folding process are completed continuously on the same machine, eliminating manual transfer and secondary clamping, thus eliminating cumulative errors caused by multiple positioning steps. After the frame is folded, the four corners of the box are joined together perfectly, which greatly reduces the amount of subsequent welding work and makes it easier to ensure the quality of the weld.

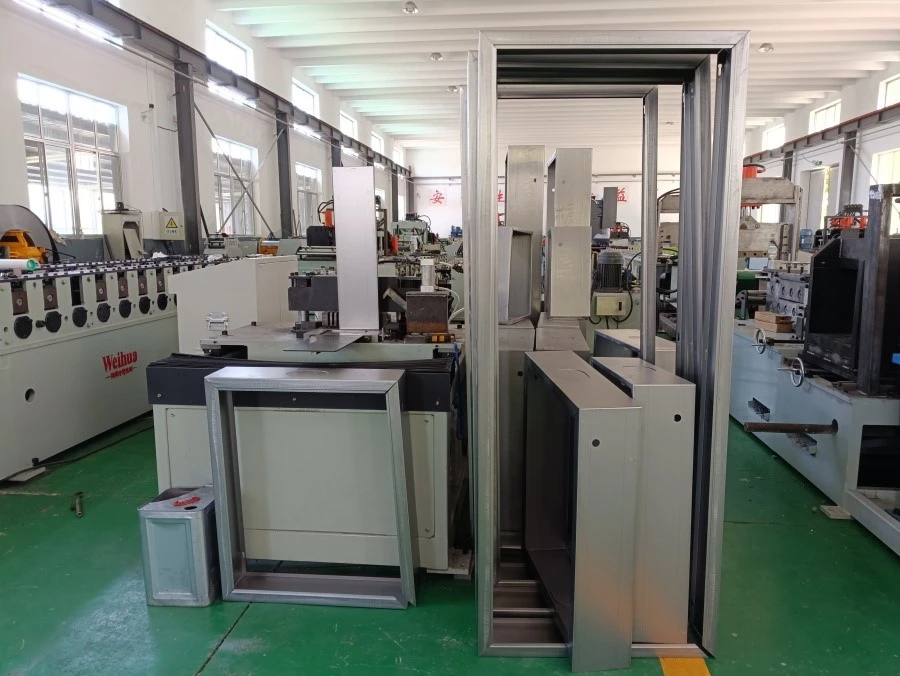

Factory photos

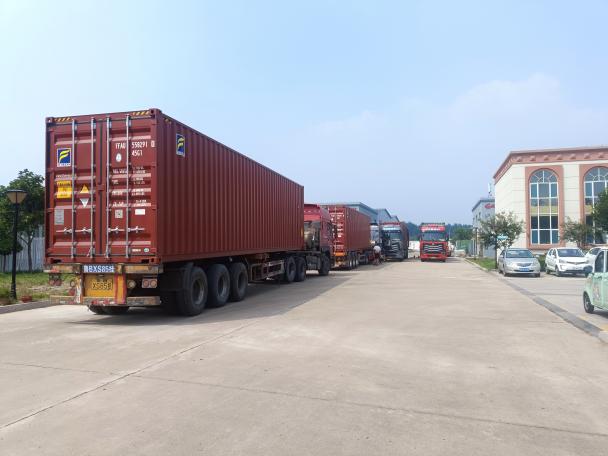

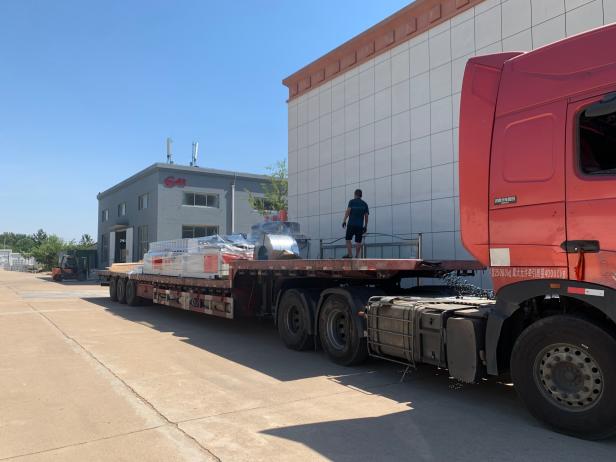

Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: What is the difference between fire extinguisher box manufacturing equipment and ordinary sheet metal bending machines?
A: Ordinary bending machines can only complete a single bending action and require multiple machines such as shearing machines and punch presses for segmented processing. This equipment integrates automatic corner trimming, punching, cold bending forming, cutting, and frame folding, and can directly and continuously process steel strips into finished fire extinguisher box frames without manual intervention. One main unit replaces multiple traditional machines, significantly improving production efficiency and precision.
Q: Is the equipment complicated to operate? How many people are needed?
A: The equipment is equipped with a touch screen human-machine interface. All parameters (box dimensions, material thickness, punching positions, etc.) can be set and stored on the screen. When changing models, the formula can be retrieved with one click. Only one person is needed to operate the entire machine, responsible for feeding, monitoring the operating status, and receiving materials.
