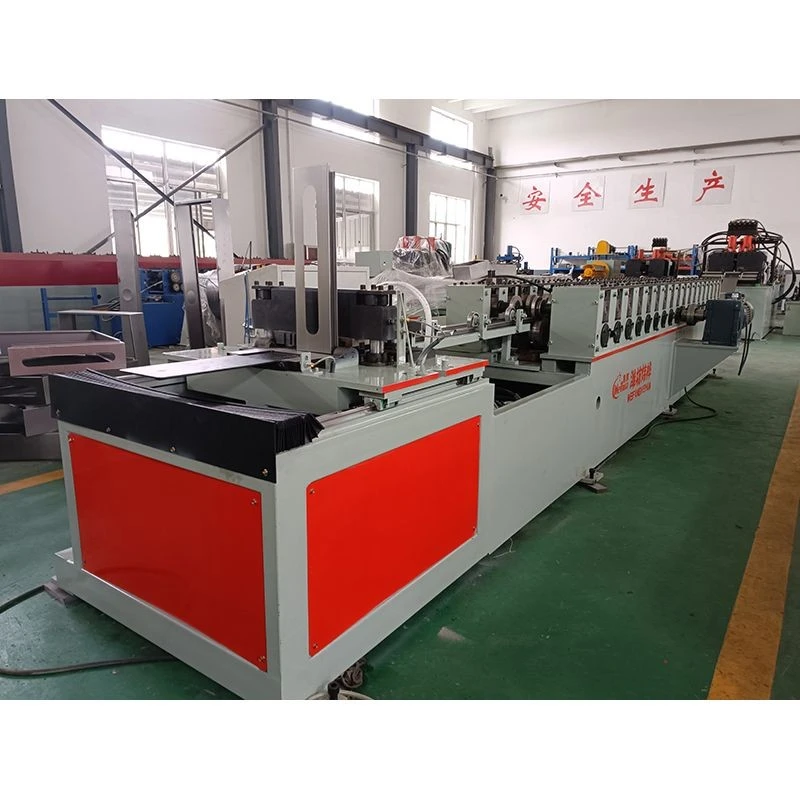

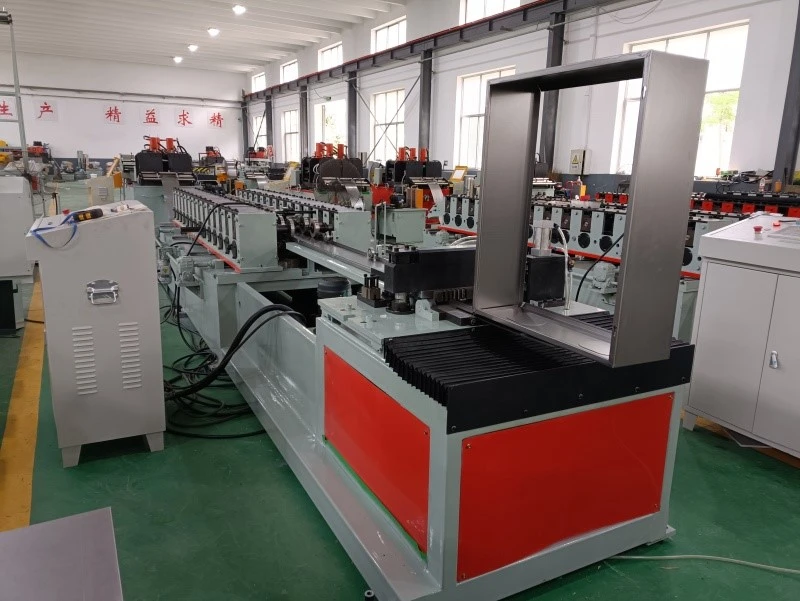

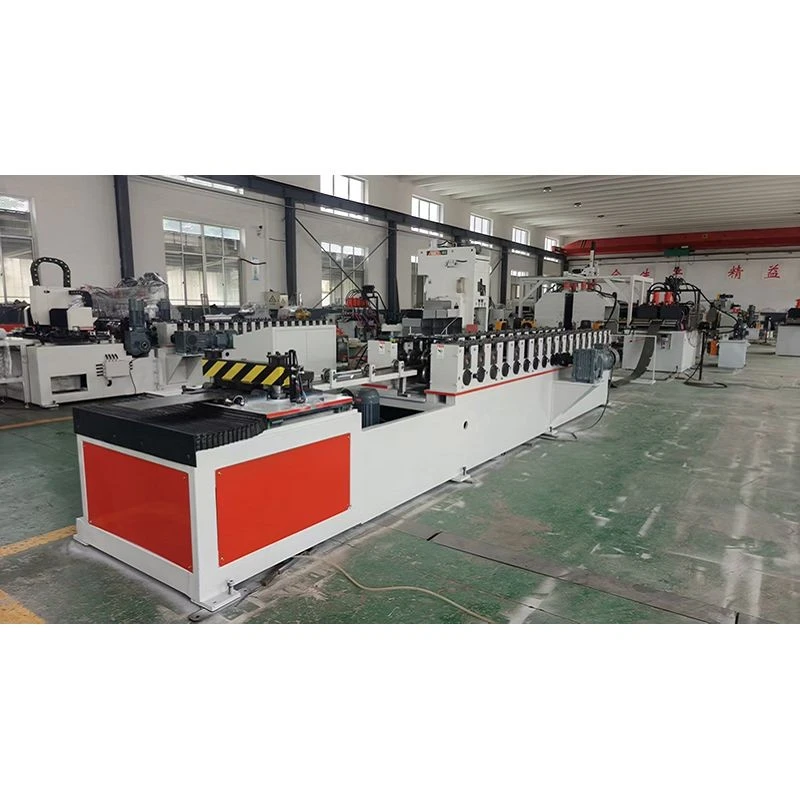

Fire Hydrant Box Manufacturing Equipment
The Fire Hydrant Box Manufacturing Equipment is the core forming machine of the fire hydrant box production line, specifically designed to directly process steel strips into the four-sided frame of the fire hydrant box. This equipment integrates automatic corner trimming, servo feeding, continuous punching, high-precision cold bending, hydraulic cutting, and automatic frame folding, making it a crucial section of the entire production line. The equipment occupies 21.5×2.0×1.8 meters, has a total power of approximately 27kW, operates on a 380V three-phase power supply, and produces approximately 110 boxes per hour, with a daily capacity of 1000 units. The equipment supports free adjustment of the box's length, width, and height, and the material thickness can be customized according to customer requirements, making it specifically suitable for one-time forming of fire hydrant boxes.
Technical Specifications
|
Product Name |
Fire Hydrant Box Manufacturing Equipment |
|
|
Daily production capacity |
1000 fire extinguisher boxes |
|
|
Land area |
Approximately 50 square meters |
|
|
The equipment mainly consists of |
A feeding device, a leveling device, an automatic feeding device, a continuous punching device, a high-precision cold bending forming machine, a length-cutting device, an automatic frame-folding device, and an electrical control system. |
|
|
Main functions |
Automatic corner trimming, servo automatic punching, automatic material feeding, automatic forming, and automatic frame folding. |
|
|
Fire extinguisher box production line equipment manufacturing process |
Feeding system-Leveling machine-Servo feeding system-Punching system-Forming machine-Hydraulic blocking-Active frame-folding system-Material receiving-Robot active welding, electrical system, etc. |
|
|
Fire extinguisher box production line equipment floor area |
21.5*2.0*1.8 (Length*Width*Height) |
|
|
Power supply standard |
380V/3 phase |
|
|
Roll Material |
Cr12 CNC machined; quenched to a hardness of HRC58°-60° |
|
|
Power |
Approximately 27kw |
|
|
Production speed |
Approximately 110 boxes/hour (Specific products are customized according to the plan) |
|
Product Advantages
- Double-sided punching capability, adapting to the dual-sided installation requirements of fire hydrant boxes. Fire hydrant boxes require symmetrical installation of hose racks and nozzle supports on both sides. The equipment's punching system supports simultaneous punching of the left and right side panels of the box, with paired and precisely positioned holes, eliminating the need for secondary clamping and single-sided processing. This ensures the racks are level and symmetrical after installation, facilitating smooth access to hoses and nozzles.
- High-precision door frame bending, no panel adjustments required. The four corners of the fire hydrant box door frame require precise alignment, demanding high compatibility with glass window frames or panels. The equipment utilizes a patented high-precision cold-bending forming technology to ensure accurate door frame bending angles, minimal corner gaps, uniform gaps, and excellent sealing after door panel installation, eliminating the need for on-site manual adjustments.
- Fast response to non-standard customization, meeting diverse procurement needs. Fire hydrant box dimensions and accessory installation positions vary across regions. The equipment supports rapid adjustment of box dimensions and punching positions to adapt to the diverse requirements of fire departments or bidding projects in different regions. After the customer provides the drawings, our technical staff can quickly develop mold solutions and molding parameters to achieve short-cycle delivery of non-standard orders..

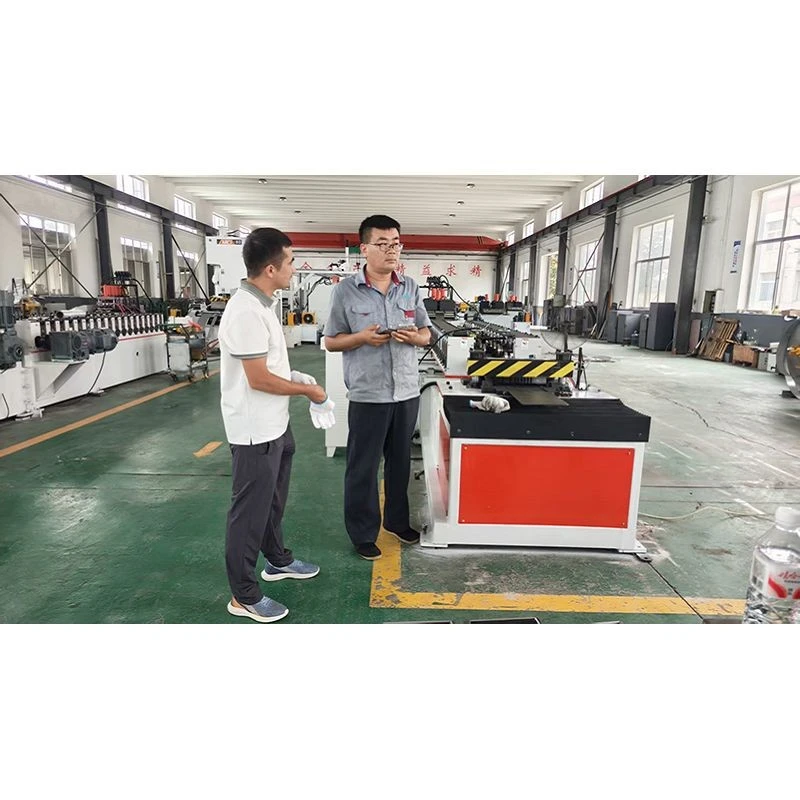

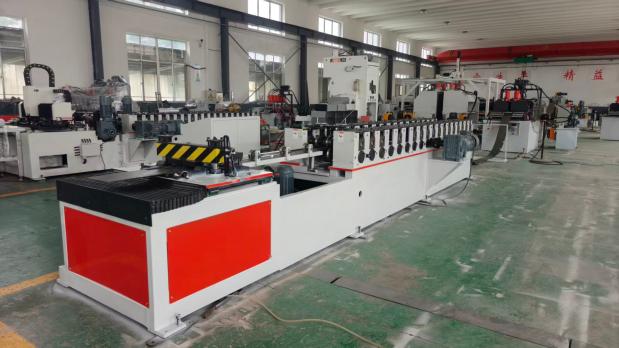

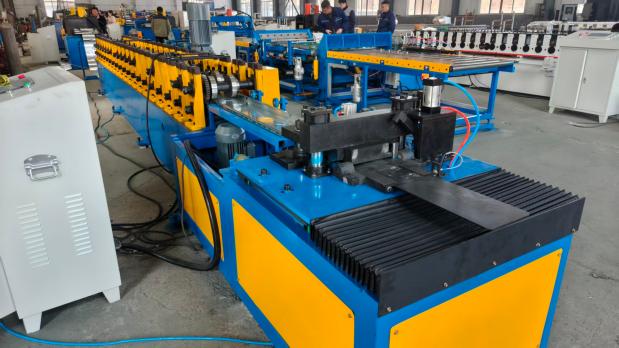

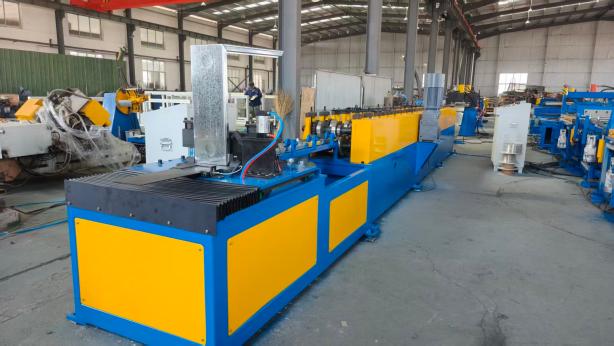

Factory photos

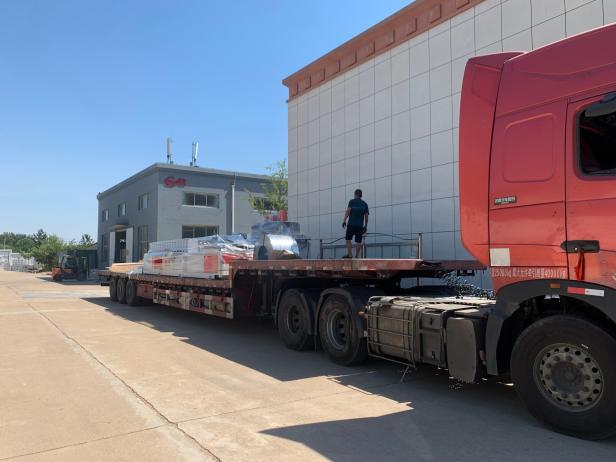

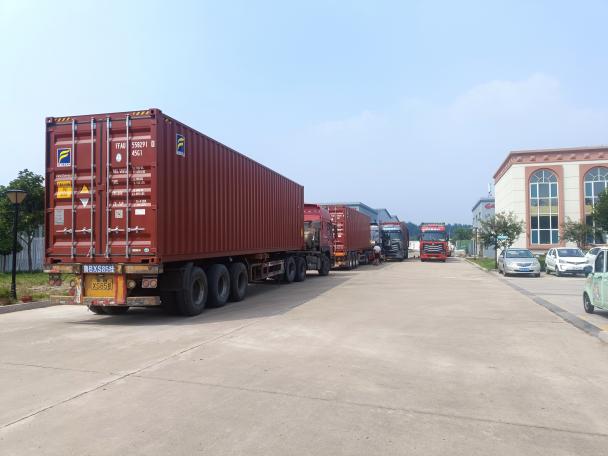

Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: Can the equipment's punching system punch mounting holes of different shapes?
A: Yes. The stamping dies can be configured with punches of different shapes (round holes, square holes, oblong holes) and sizes according to customer needs, for various applications such as hose bracket fixing, alarm button installation, and glass window frame screw fixing. Die changeover can be completed within 30 minutes.
Q: Can the equipment process fire hydrant boxes made of stainless steel?
A: The standard configuration is suitable for cold-rolled strip steel and galvanized strip steel. For processing stainless steel (commonly used in humid environments or high-end locations), customized solutions are available.
