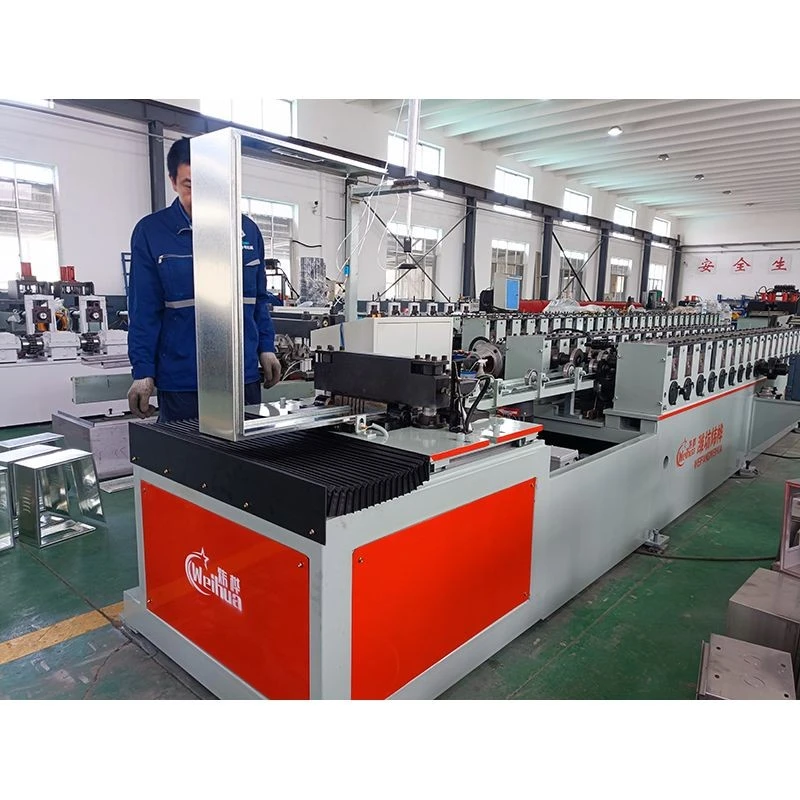

Fire Extinguisher Box Manufacturing Equipment
The fire extinguisher box manufacturing equipment is the core forming machine of the fire extinguisher box production line, specifically designed to directly process steel strips into the four-sided frame of the fire extinguisher box. This equipment integrates automatic corner trimming, servo feeding, continuous punching, high-precision cold bending forming, hydraulic cutting, and automatic frame folding. The equipment supports free adjustment of the box's length, width, and height, and the material thickness can be customized according to customer requirements. It occupies only 21.5×2.0×1.8 meters and has a total power of approximately 27kW, making it specifically suitable for the mass production and high-efficiency manufacturing of fire extinguisher boxes.
Technical Specifications
|
Product Name |
Fire Extinguisher Box Manufacturing Equipment |
|
|
Daily production capacity |
1000 fire extinguisher boxes |
|
|
Land area |
Approximately 50 square meters |
|
|
The equipment mainly consists of |
A feeding device, a leveling device, an automatic feeding device, a continuous punching device, a high-precision cold bending forming machine, a length-cutting device, an automatic frame-folding device, and an electrical control system. |
|
|
Main functions |
Automatic corner trimming, servo automatic punching, automatic material feeding, automatic forming, and automatic frame folding. |
|
|
Fire extinguisher box production line equipment manufacturing process |
Feeding system - Leveling machine - Servo feeding system -Punching system - Forming machine - Hydraulic blocking -Active frame-folding system - Material receiving - Robot active welding, electrical system, etc. |
|
|
Fire extinguisher box production line equipment floor area |
21.5*2.0*1.8 (Length*Width*Height) |
|
|
Power supply standard |
380V/3 phase |
|
|
Roll Material |
Cr12 CNC machined; quenched to a hardness of HRC58°-60° |
|
|
Power |
Approximately 27kw |
|
|
Production speed |
Approximately 110 boxes/hour (Specific products are customized according to the plan) |
|
Product Advantages
One-piece reinforced bottom structure ensures robust load-bearing capacity.
Fire extinguisher boxes need to support the weight of fire extinguishers ranging from several kilograms to tens of kilograms, making bottom strength crucial. The equipment features a one-piece stamping process to create reinforcing ribs during the bottom panel molding, enhancing the base plate's bending resistance. This eliminates the need for subsequent welding of reinforcing beams, reducing processing steps while ensuring the bottom rigidity meets long-term load-bearing requirements.
Bulk pre-punching of vent holes complies with fire safety regulations.
Fire extinguisher boxes are required by fire safety regulations to have vent holes to prevent internal gas leakage and accumulation. The equipment batch-punches standard vent holes on the side or back panels of the box, ensuring uniform hole distribution and consistent diameter, fully meeting industry standards for fire extinguisher boxes and eliminating the need for separate drilling processes.
Quick switching between single and double cylinder specifications.
Fire extinguisher boxes are available in single-cylinder (350-400mm wide) and double-cylinder (600-700mm wide) sizes. The equipment allows for quick switching between the two sizes by adjusting the box width parameter, eliminating the need to change molds. The same equipment can flexibly handle different order requirements.

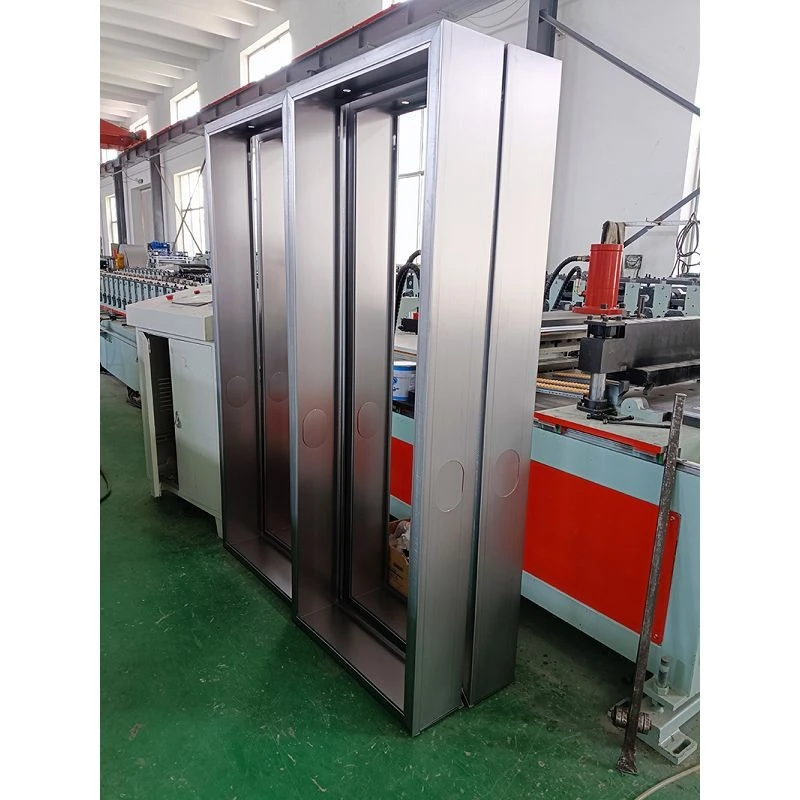

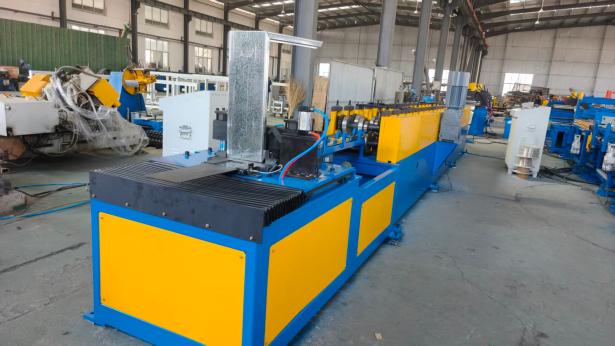

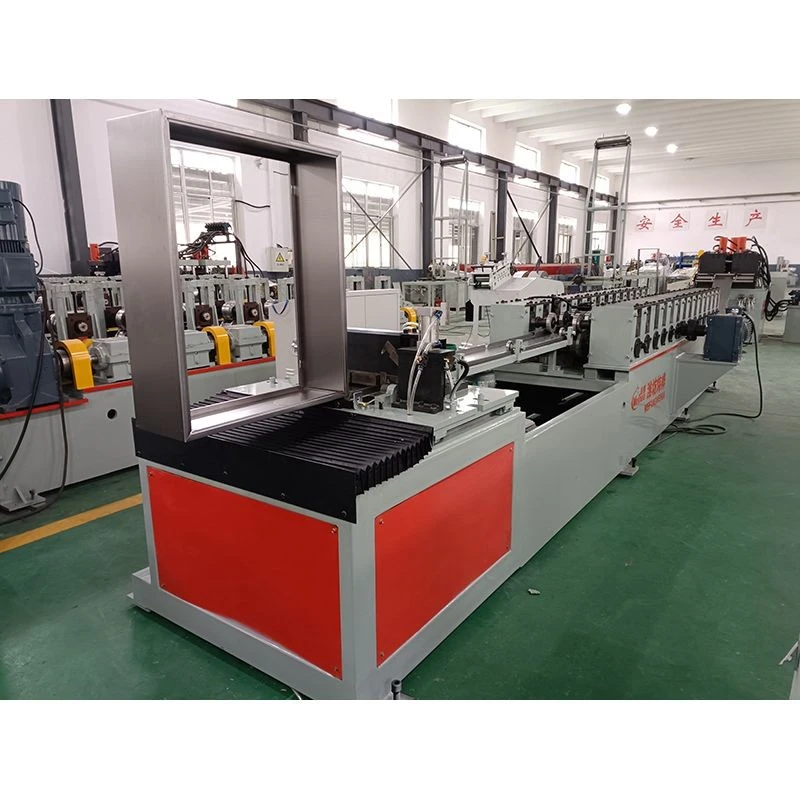

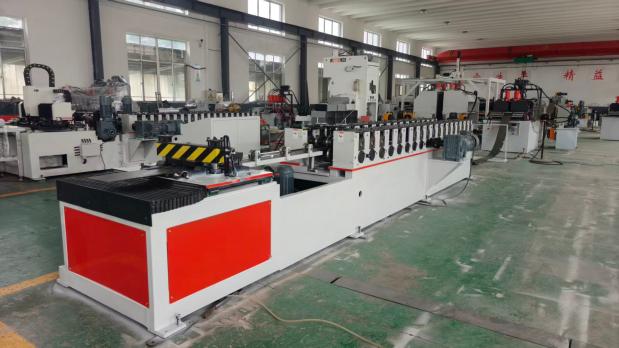

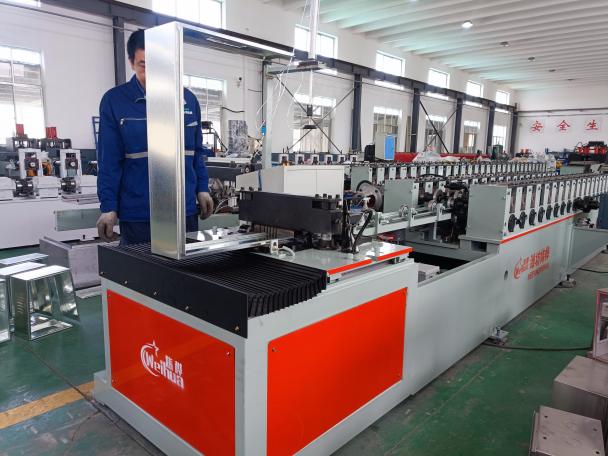

Factory photos
Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: Are fire extinguisher boxes and fire hydrant boxes the same product?
A: No. Fire extinguisher boxes are used to store portable fire extinguishers. They are smaller in size and shallower (200-300mm), with a simpler structure. Fire hydrant boxes are used to store fire hydrants, hoses, and nozzles. They are larger and require space for glass frames, alarm buttons, etc. This production line can produce both products by adjusting dimensions and changing molds.
Q: Does the bottom of the fire extinguisher box need additional reinforcement?
A: The bottom load-bearing capacity depends on the weight of the fire extinguisher and the thickness of the sheet metal. The equipment has already stamped reinforcing ribs on the bottom plate to enhance rigidity. If the customer's fire extinguishers are heavy, thicker sheet metal can be selected, or a bottom reinforcement solution can be requested during the selection process. Technicians can customize the bottom forming process.
