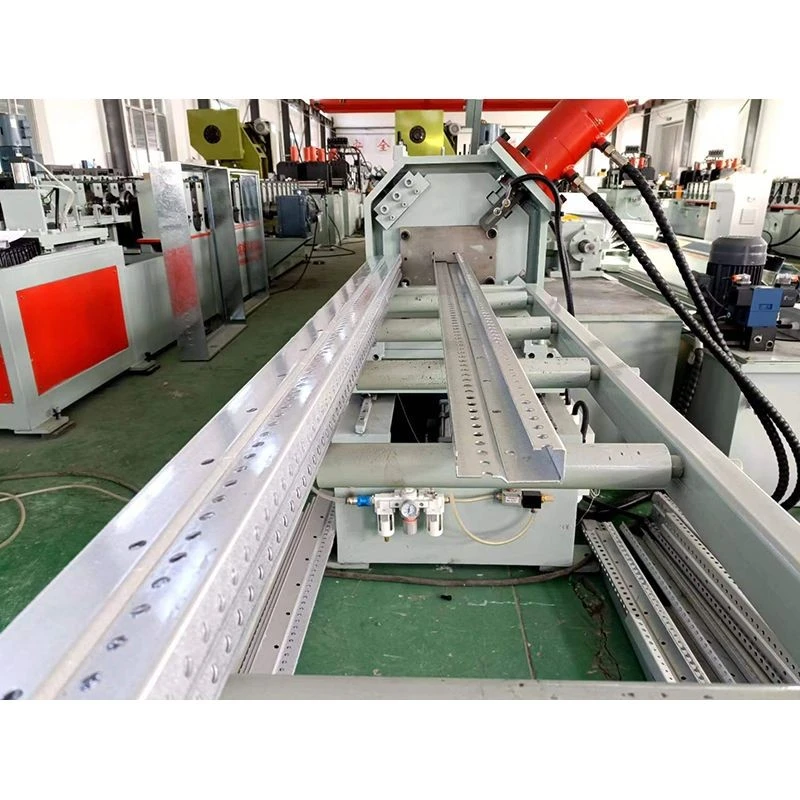

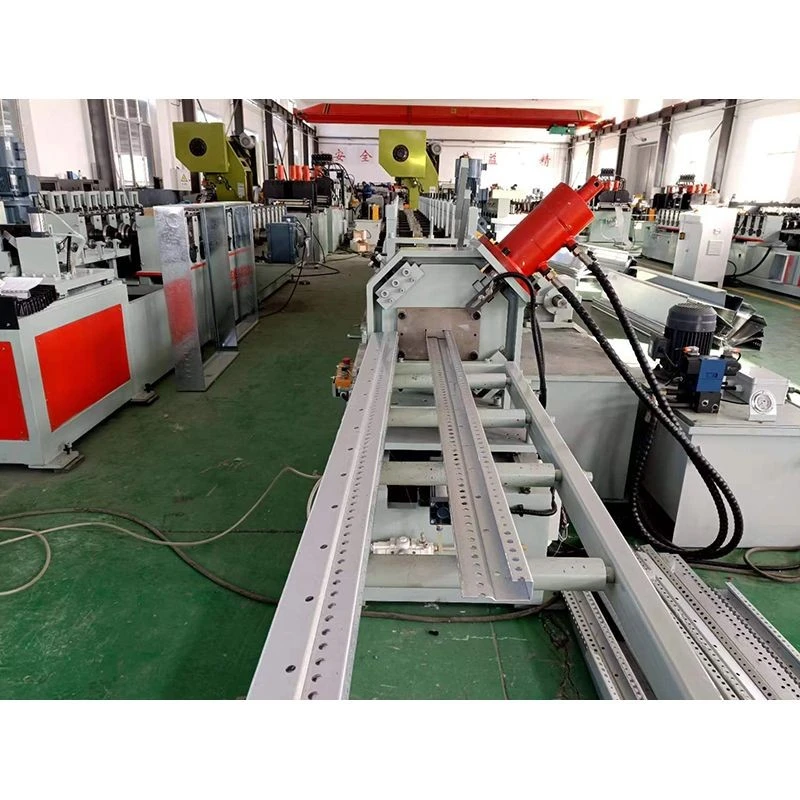

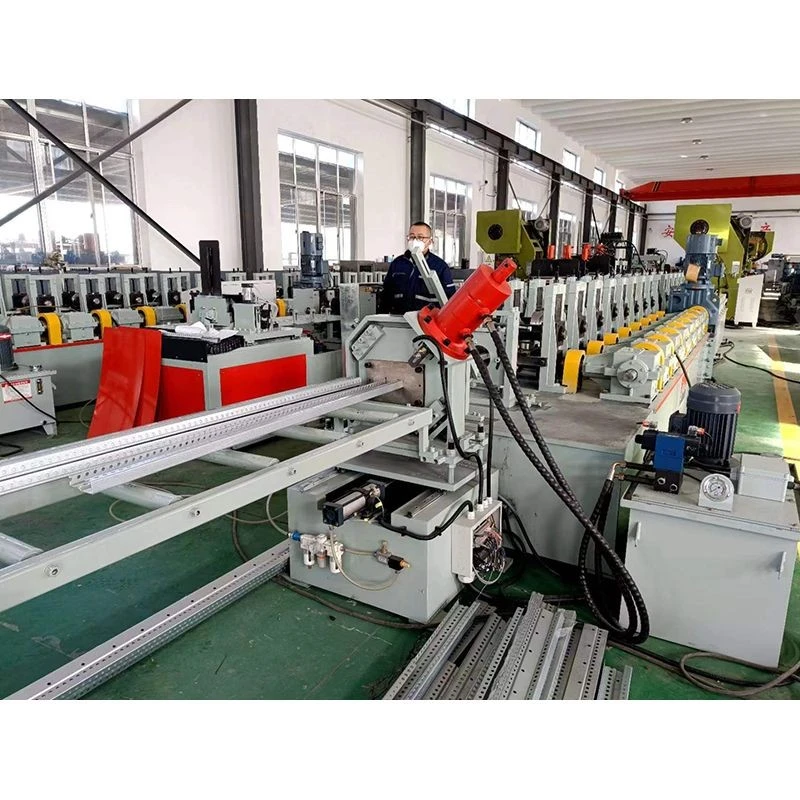

C Profile Roll Forming Machine
The C-profile roll forming machine is a specialized piece of equipment used to roll-form steel strips into C-shaped sections. C-profiles are the most commonly used mounting bracket profiles inside electrical cabinets and distribution boxes, used for mounting guide rails, component fixing beams, cross braces, etc. The equipment adopts a gantry-type transmission structure, Cr12 hardened rollers (HRC58°-60°), PLC control, speed 0-8m/min, power 28kW, accuracy ±0.5mm, and is suitable for 1.5-2.5mm thick plates. The length can be freely set, making it a general-purpose machine for mass production of internal structural components for cabinets.
Technical Specifications
|
Product Name |
C Profile Roll Forming Machine |
|
Material Specifications |
Q235 cold-rolled strip steel |
|
Material Thickness |
1.5mm/2.5mm (customizable according to user requirements) |
|
Production Speed |
0-8 meters/minute (customizable according to user requirements) |
|
Production Specifications |
Length freely adjustable (customizable) |
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
Air Source |
0.5m³/min; Pressure: 0.7MPa |
|
Hydraulic Oil Type |
46# Hydraulic Oil |
|
Gear Oil Type |
18# Gear Oil |
|
Roll Material |
Cr12 CNC machined; quenched, hardness reaches HRC58°-60° |
|
Drive Motor |
Variable frequency motor drive |
|
Total Motor Power |
Approximately 28kW (excluding welding parts) |
|
Cutting Die Material |
Cr12MoV |
|
Transmission Mode |
Gantry type + independent transmission gearbox |
|
Cutting Method |
Hydraulic cutting |
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤ 1000mm) |
|
Operating System |
Touchscreen HMI |
|
Electrical Control |
Mitsubishi PLC Programmable Logic Controller |
|
Legacy Space |
28*3*3 meters (Length × Width × Height) |
Product Advantages
I. One-time forming of C-shaped cross-section, precise opening size with no springback
C-shaped profiles have an open cross-section, and springback at the folded edges can easily cause the opening size to increase. The equipment uses multi-pass progressive forming with over-bending compensation, ensuring the springback returns to the precise size after forming. A finishing roller in the final pass corrects the opening size, ensuring the C-shaped profile is parallel on both sides and has a consistent opening width.
II. Mounting holes are formed simultaneously with profile forming, eliminating the need for secondary processing
C-shaped profiles are used to install guide rails and components, requiring equidistant mounting holes along their length. The equipment simultaneously punches circular mounting holes and oblong adjustment holes in the stamping section. The hole spacing is distributed according to a 25mm module or customer-specified dimensions, and hole position accuracy is guaranteed by servo feeding closed-loop control.
III. One universal main unit for C-shaped/U-shaped/GGD-shaped profiles, facilitating easy changeovers
C-shaped, U-shaped, and GGD profiles have similar cross-sections, and switching is mainly achieved by adjusting the roller spacing and changing the final pass rollers. The equipment design is compatible with multiple profile roller sets, and the same main unit covers commonly used profiles inside the cabinet.

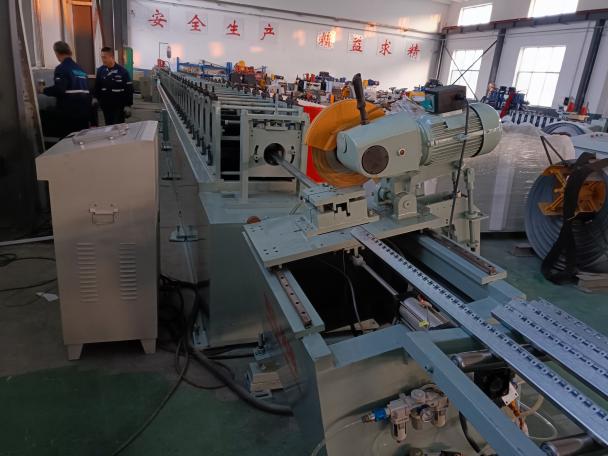

Factory photos

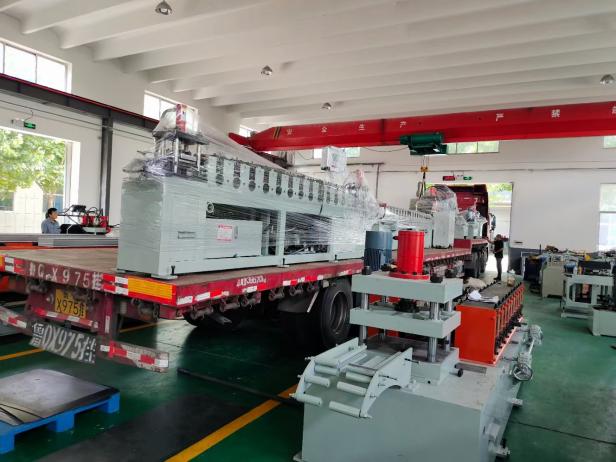

Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: What's the difference between C-profiles and U-profiles?
A: C-profiles have the same flange height on both sides, forming a C-shape in cross-section; U-profiles have the same flange height on both sides but a wider bottom, forming a U-shape in cross-section. They have different uses: C-profiles are used for mounting guide rails and components, while U-profiles are used for beams and supports.
Q: Can the mounting hole spacing be customized according to customer requirements?
A: Yes. After the customer provides the hole spacing requirements, they can set the parameters on the touchscreen. The servo feeding system will then precisely punch the holes according to the set pitch.
