Supermarket Shelf Profile Roll Forming Line

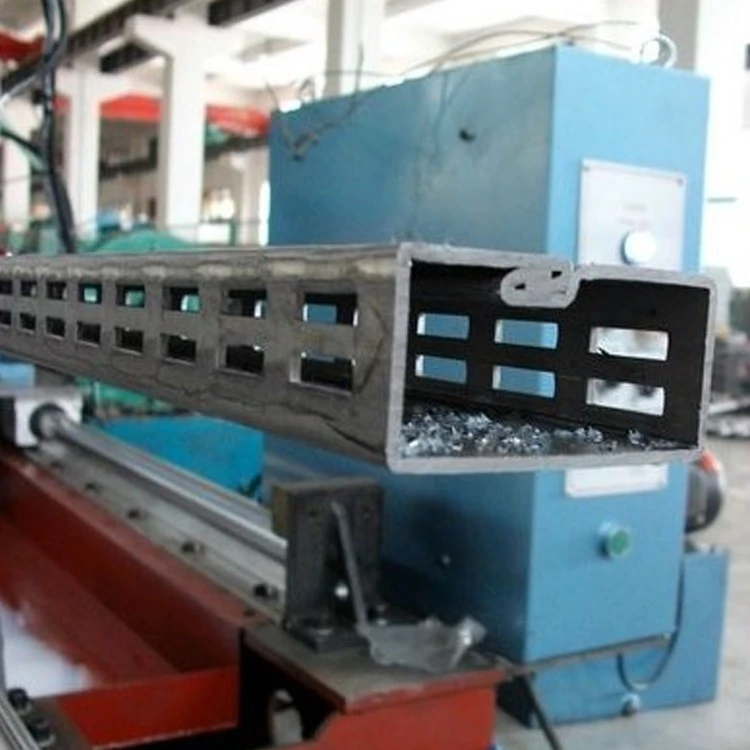

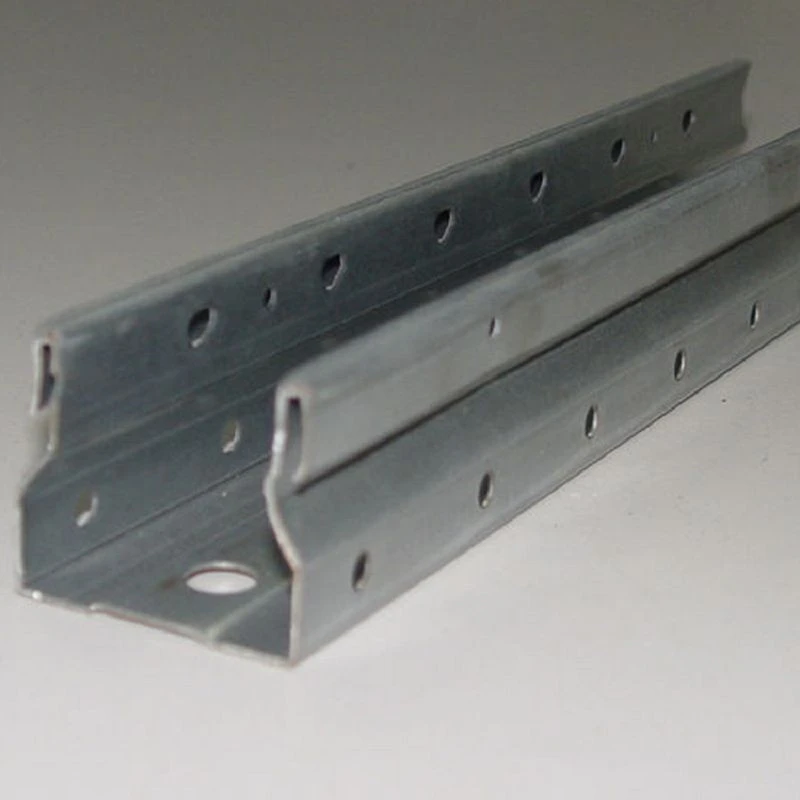

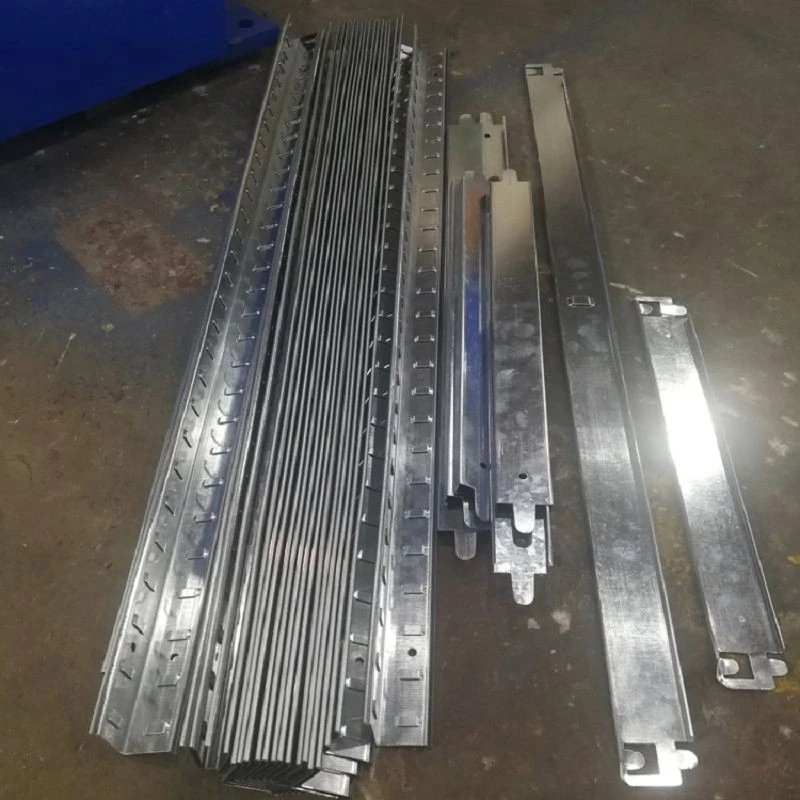

The Supermarket Shelf Profile Roll Forming Line is a specialized production line for continuously roll-forming steel strips into various irregularly shaped cross-section profiles for supermarket shelves. Supermarket shelves are assembled from profiles of different cross-sections, including shelves (with multi-layer load-bearing folds), back panels (with longitudinal reinforcing ribs), uprights (irregularly shaped tubular sections with butterfly hanging holes), beams (rectangular tubes with hanging teeth), reinforcing ribs (with V-grooves), and interlocking beams (with interlocking structures). This machine can process materials with a thickness of 0.28-0.8mm (customizable) and a width of ≤700mm (customizable).
Technical Specifications
|
Product Name |
Supermarket Shelf Profile Roll Forming Line |
|
Transmission Mode |
Split-opening adjustment |
|
Material Specification |
Q235 |
|
Production Speed |
5-15m/min |
|
Cutting Device |
Hydraulic cutting |
|
Voltage |
Customizable |
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
Control Components |
Mitsubishi PLC controller (Japan) |
|
Processable Material Thickness |
0.28-0.8mm (Customized according to customer requirements) |
|
Processable Material Width |
≤ 700mm (Customized according to customer requirements) |
|
Roll Material |
GCr15, Hardness HRC58°-62° |
|
Total Motor Power |
23KW |
|
Hydraulic System Power |
5KW |
|
Uncoiler Load Capacity |
Less than or equal to 5 tons |
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤ 3000mm) |
|
Cutting Die Material |
Cr12MoV |
Product Advantages
Multi-pass forming of irregular cross-sections, producing complex profiles in one go
The cross-sectional shapes of shelving profiles are complex and varied: shelves require multiple folded edges, uprights need to be closed or semi-closed tubular, and beams need to have a toothed structure. The equipment uses multiple sets of rollers for progressive forming, rationally distributing the deformation amount in each pass. The steel strip gradually undergoes partial deformation as it passes through each roller, ultimately precisely forming the cross-sectional shape required by the customer. Finished profiles can be produced in a single feed.
Splitting adjustment drive, rapid adaptation to different widths
Different components of the shelving have significant width differences. The equipment adopts a split-opening adjustment drive mode, where the distance between the rollers on both sides can be adjusted synchronously, quickly adapting to different profile width requirements. Width adjustment is automatically completed after setting parameters on the touch screen, eliminating the need for manual disassembly and calibration, reducing changeover time by more than 70% compared to traditional methods.
Factory photos
Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: Can the equipment process sheets of different thicknesses simultaneously?
A: No, it cannot process them simultaneously. Each roller set is designed for a specific thickness. To change the sheet thickness, the roller gap needs to be adjusted (by adjusting the clamping bolts or shims). If the thickness change exceeds ±0.15mm, it is recommended to replace the roller set with the corresponding gap to avoid incomplete forming or excessive compression. The equipment supports continuously adjustable thicknesses within the range of 0.28-0.8mm. For commonly used thicknesses (e.g., 0.4-0.6mm), quick switching can be achieved through parameter fine-tuning.
