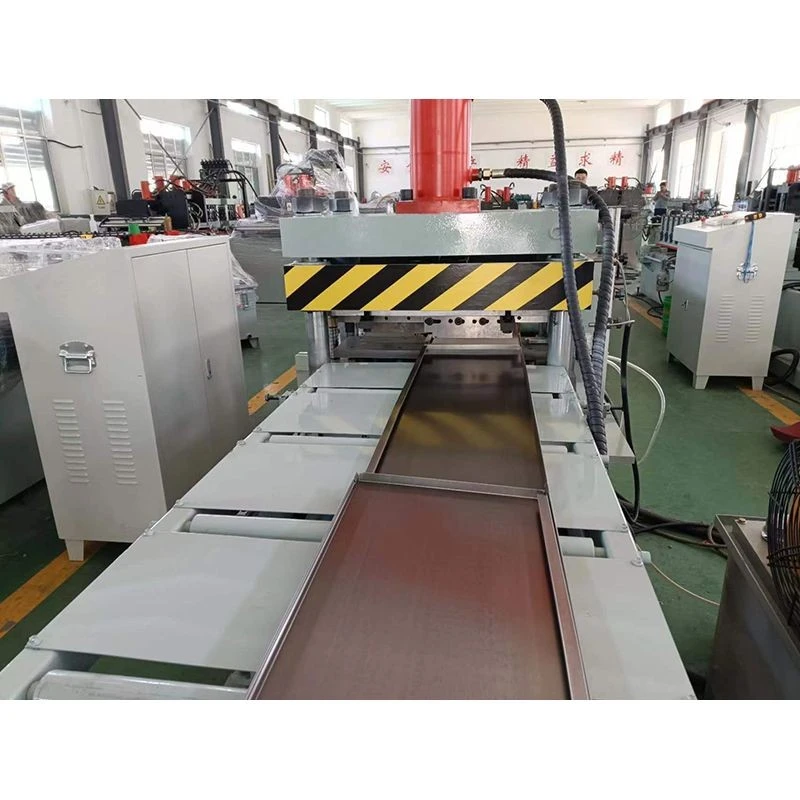

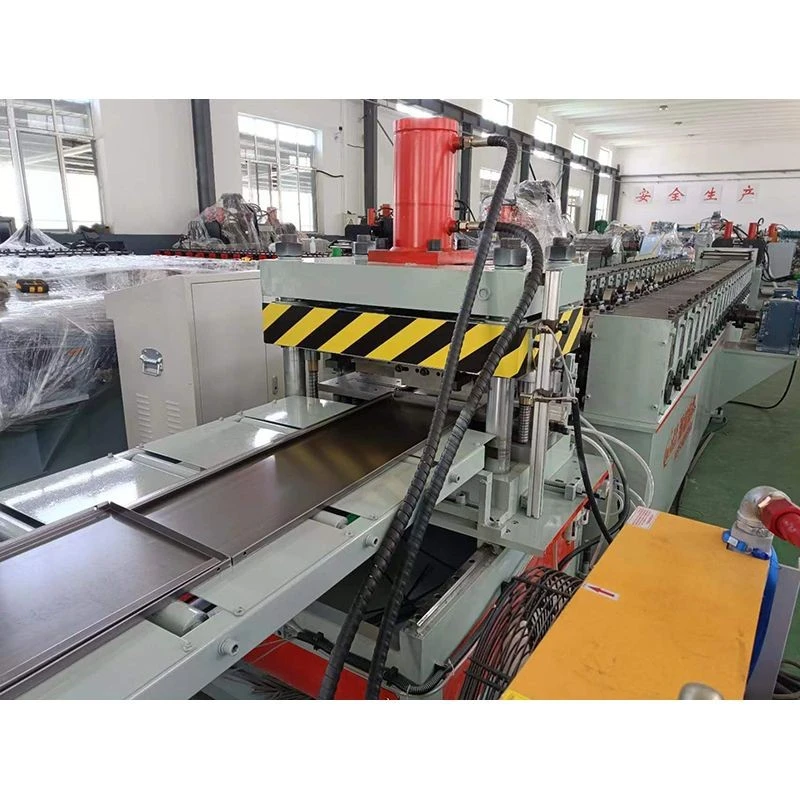

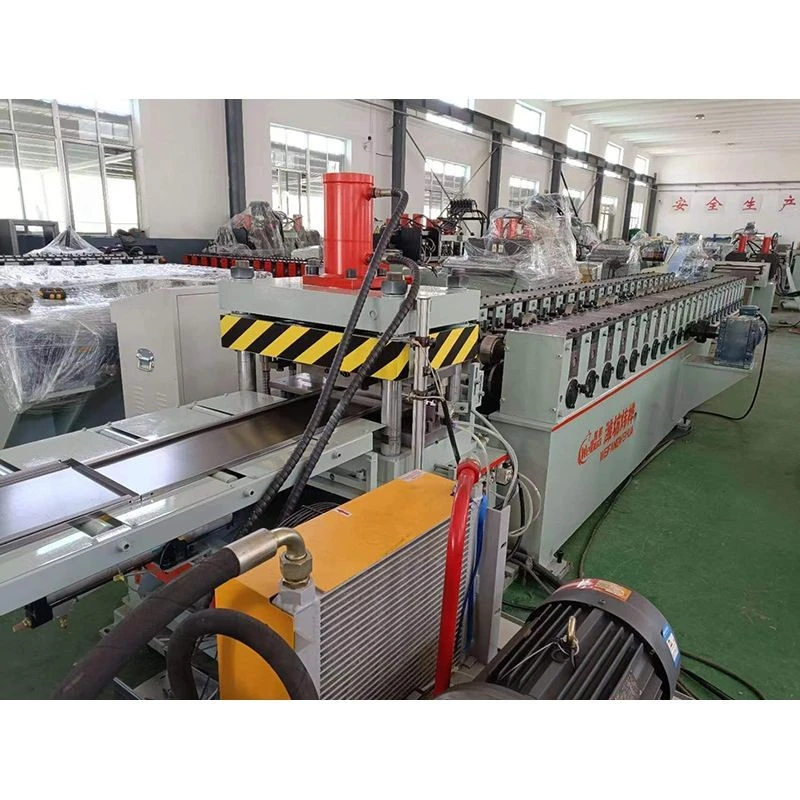

Supermarket Shelf Panel Roll Forming Machine

The supermarket shelf cold bending forming machine is a specialized piece of equipment used for continuously roll forming steel strips into supermarket shelf profiles. Supermarket shelf panels are the horizontal plates that directly support goods in a shelving system. They are typically 0.28-0.8mm thin plates with a width ≤700mm, and their cross-sectional shape includes multi-layered folded edge reinforcement to ensure they do not deform when supporting goods. This equipment uses GCr15 bearing steel rollers (quenched to a hardness of HRC58°-62°), features a split-adjustable transmission mode, and integrates uncoiling, leveling, servo feeding, punching, cold bending forming, and hydraulic cutting into one unit.

Multi-layered Folding and One-time Forming for High Shelf Strength

Supermarket shelf panels require multi-layered folding structures to enhance load-bearing capacity within a limited thickness. The equipment uses multi-pass progressive roller pressing to form a shelf cross-section with multi-layered reinforced folds in one step. The folding layers and angles are precisely designed according to the shelf's load-bearing requirements. After forming, the shelf's bending strength is several times higher than a flat sheet, ensuring it does not deform under the heavy pressure of supermarket goods.

Split-Open Adjustable Drive for Flexible Width Adaptation

The equipment adopts a split-open adjustable drive mode, where the rollers on both sides can synchronously adjust the opening and closing distance, quickly adapting to the production needs of different shelf widths (maximum width ≤ 700mm). One machine can produce various width specifications commonly used in supermarket shelves, such as 300mm, 400mm, 500mm, and 600mm, without the need to change roller sets, significantly reducing changeover time.

GCr15 Rollers + Precision Grinding for Zero Damage to Thin Sheet Surfaces

Shelves are an essential component of supermarket shelves, requiring high surface quality. The rollers are CNC machined from GCr15 bearing steel, hardened to HRC58°-62% after quenching, and precision ground to a roughness of Ra0.8 or higher, effectively protecting the surface of the sheet material during high-speed operation. When producing with 0.28-0.8mm thin sheets, the formed sheet surface is free of scratches and indentations, and can be directly applied to the spray coating line without grinding.
