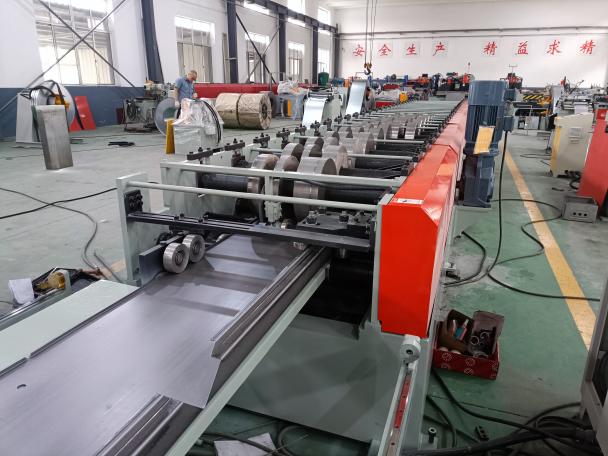

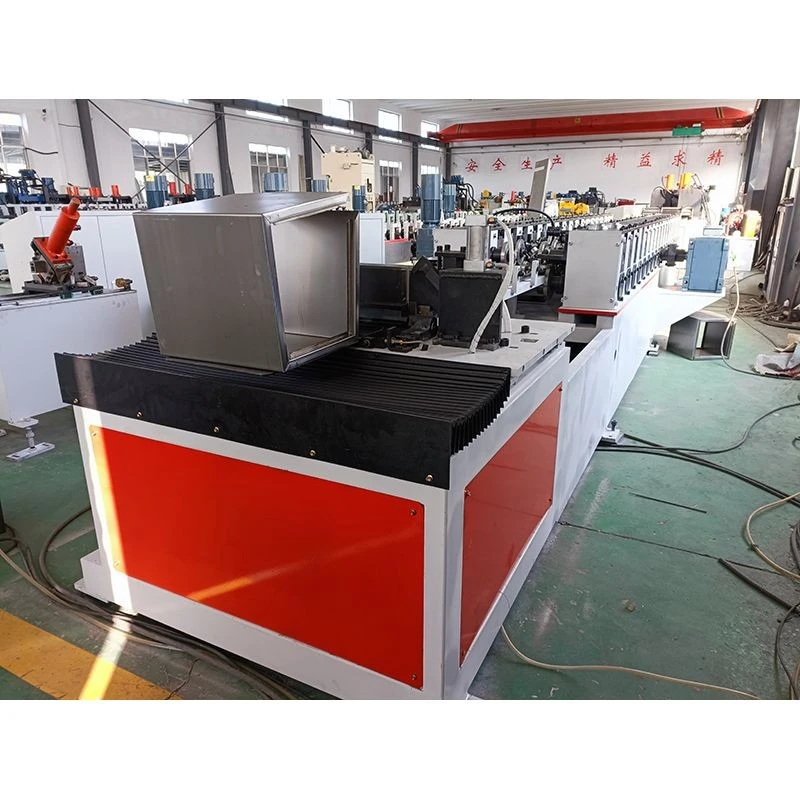

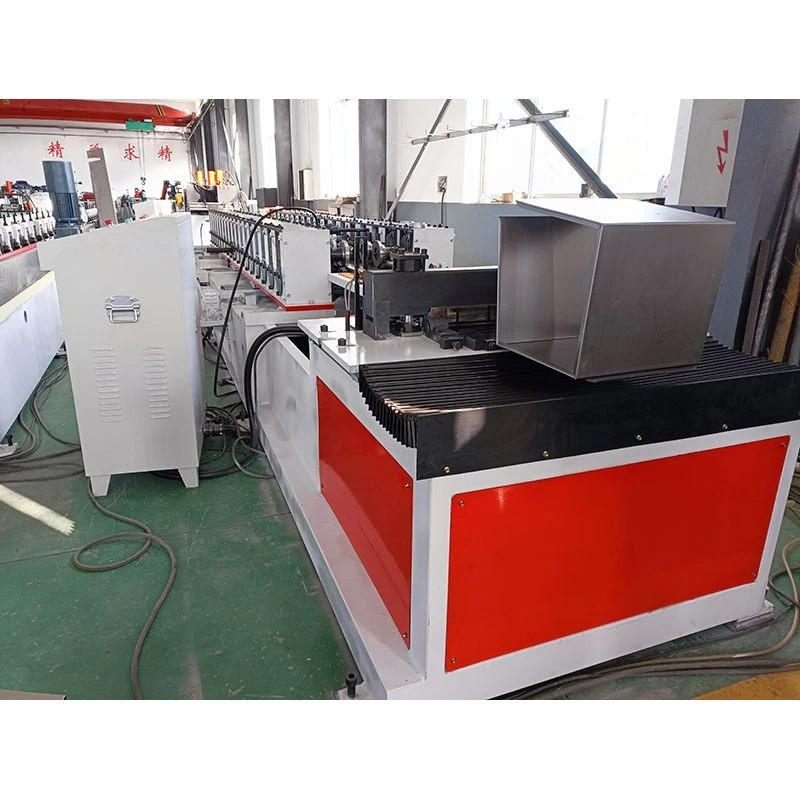

Safe Manufacturing Machine
The safe manufacturing equipment is the core forming machine of the safe production line, specifically designed to directly process steel strips into the four-sided frame of the safe body. Safe manufacturing places extremely high demands on equipment rigidity, forming precision, and the ability to process thick plates. This equipment adopts a heavy-duty frame structure and is equipped with multiple sets of Cr12 die steel CNC machining rollers. The rollers are hardened to HRC58°-60° and synchronously driven by a gearbox, ensuring uniform deformation and dimensional accuracy of thick plates (1.2-1.5mm, custom thicknesses available) during high-speed operation. It is suitable for one-time forming manufacturing of high-security protective cabinets such as safes and ammunition cabinets.
Technical Specifications
|
Product Name |
Safe Manufacturing Machine |
|
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
|
Material Thickness |
1.2→1.5mm (customizable) |
|
|
Production Speed |
1-2 pieces/minute |
|
|
Production Specifications |
Box Size: 300*400--1800*2000 (customizable) |
|
|
Box Depth |
Customizable |
|
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
|
Air Source |
0.5 m³/Min; Pressure: 0.7MPa |
|
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
|
Drive Motor |
Variable frequency motor drive |
|
|
Total Motor Power |
25kW |
|
|
Cutting Die Material |
Cr12MoV |
|
|
Transmission Mode |
Gearbox |
|
|
Cutting Method |
Hydraulic cutting |
|
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
|
Operating System |
Touchscreen HMI |
|
|
Electrical Control |
Mitsubishi PLC program control |
|
|
Footage Space |
28*2*3 meters (length×width×height) |
|
Product Advantages
Heavy-duty machine design, specializing in thick plate processing
Safes are made of thick, high-strength sheet metal, requiring significantly higher rigidity from equipment than ordinary safes. This main unit features a thickened frame and heavy-duty roller assembly. Compared to ordinary forming equipment, the increased weight and rigidity effectively suppress vibration and deformation during thick plate forming, ensuring accurate dimensions and stable angles for 1.2-1.5mm (custom thickness available) sheets.
Cr12 hardened rollers, scratch-free thick plate forming
The forming rollers are CNC machined from Cr12 mold steel, hardened to HRC58°-60%, and polished to a high gloss finish. During thick plate rolling, the roller surface exhibits strong wear resistance, preventing pits and scratches over long-term use, effectively protecting the sheet surface and avoiding roller marks and scratches on the safe body surface, reducing subsequent surface treatment rework rates.

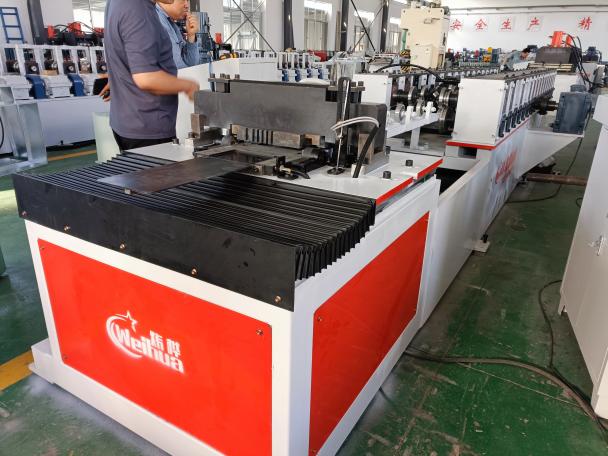

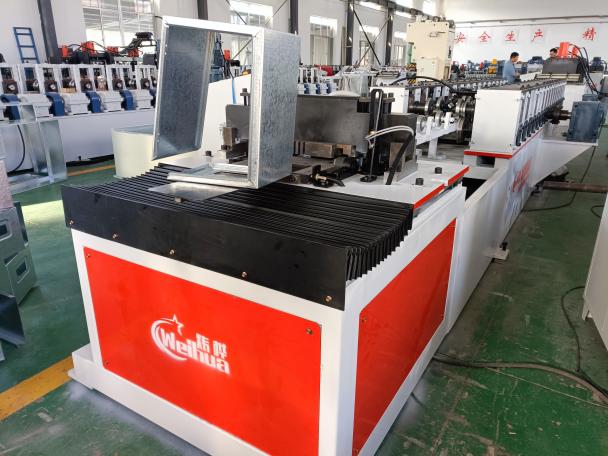

High-precision cutting, seamless four-corner joints

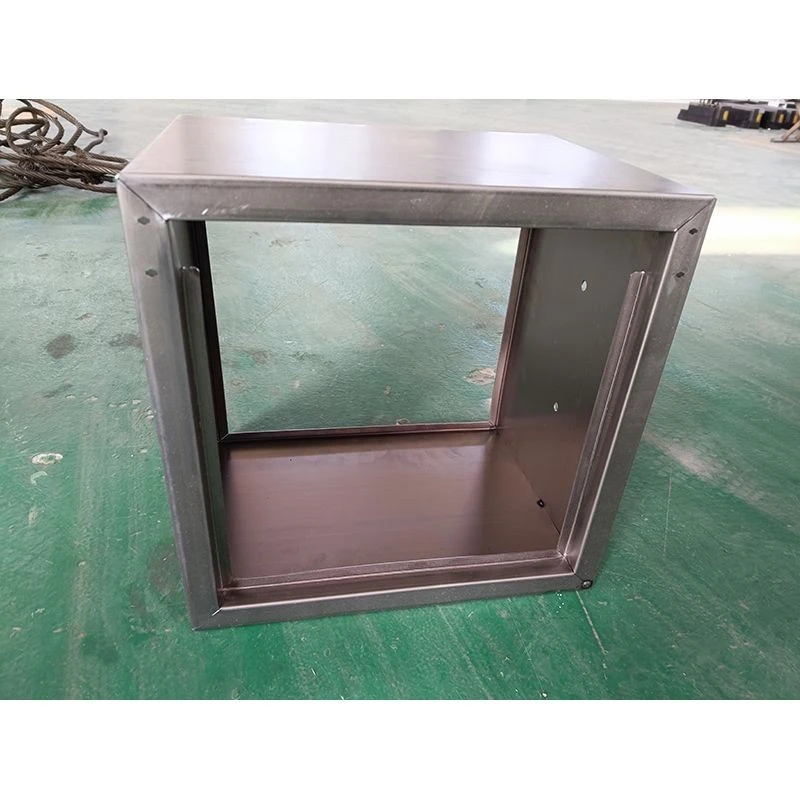

Hydraulic cutting is employed, using Cr12MoV cutting molds. Cutting dimensional tolerances are ≤±0.5mm (length ≤1000mm). The safe features a continuous bending structure at its four corners, without welds. The precision of the cutting directly determines the size of the gaps at the corner joints. High-precision cutting ensures a tight, gap-free joint at the four corners, enhancing the safe's anti-theft performance.

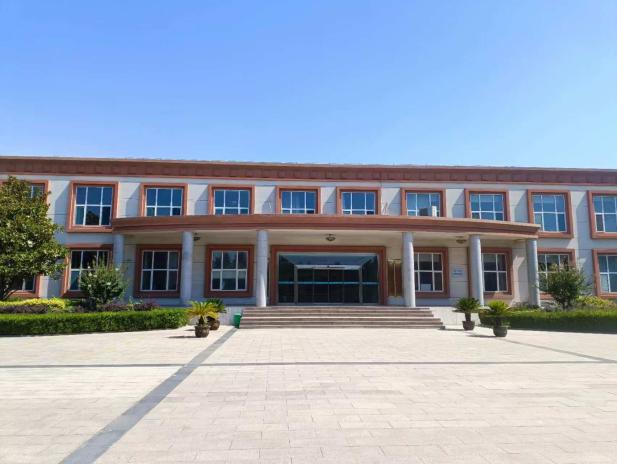

Factory photos

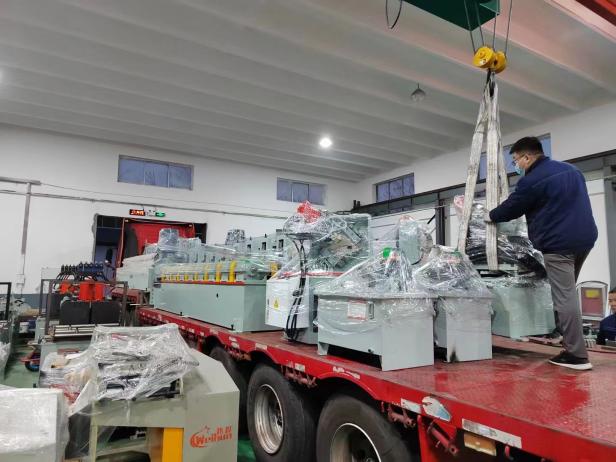

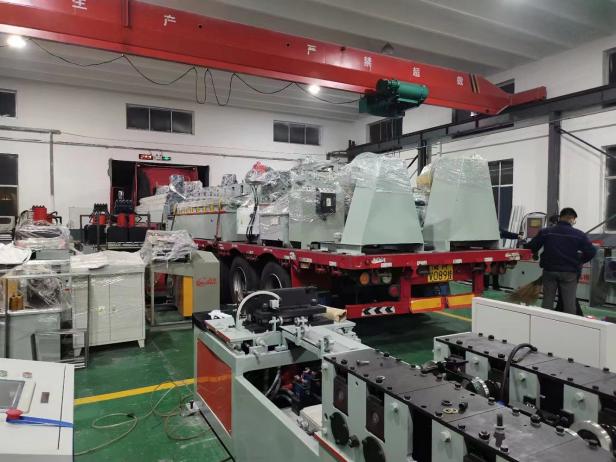

Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: Are safe manufacturing equipment and electrical distribution box manufacturing equipment interchangeable?
A: Not entirely. Safe manufacturing equipment is heavy-duty equipment specifically designed for thick plates (1.2-1.5mm and above) and high rigidity requirements, with a more robust machine body and gearbox load-bearing capacity. Using ordinary electrical distribution box equipment to process thick safe plates will result in problems such as incomplete forming, equipment vibration, and dimensional deviations.
Q: Can the equipment process stainless steel safes?
A: The standard configuration is suitable for Q235 cold-rolled strip steel and galvanized strip steel. Stainless steel has high hardness and high resilience, requiring special specifications for roller material and forming process. For processing stainless steel safes, custom-made rollers and adjusted forming gaps can be provided. Specific details regarding material grade and thickness parameters must be provided during equipment selection.
