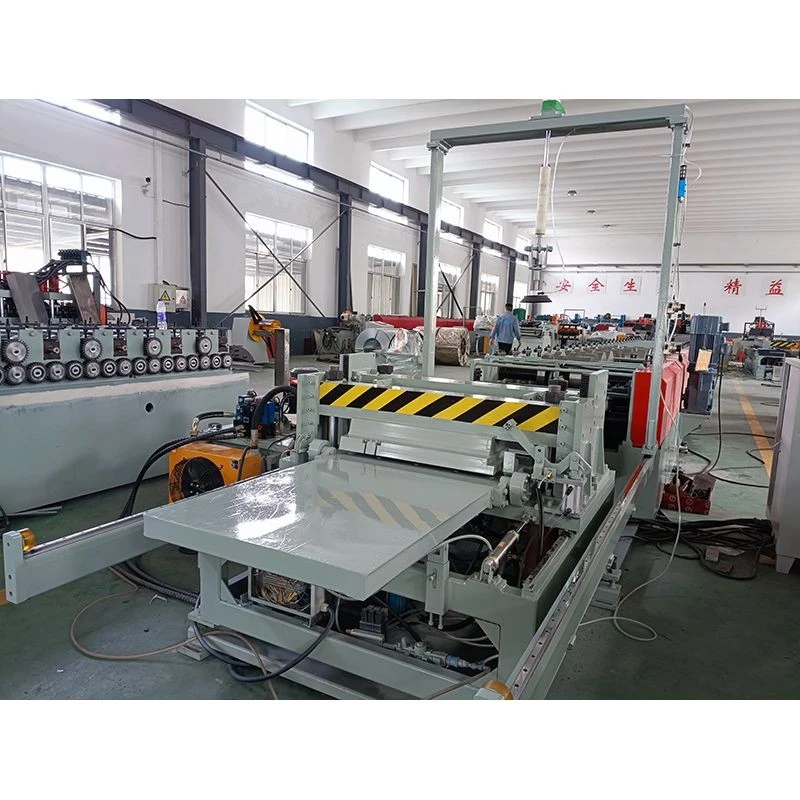

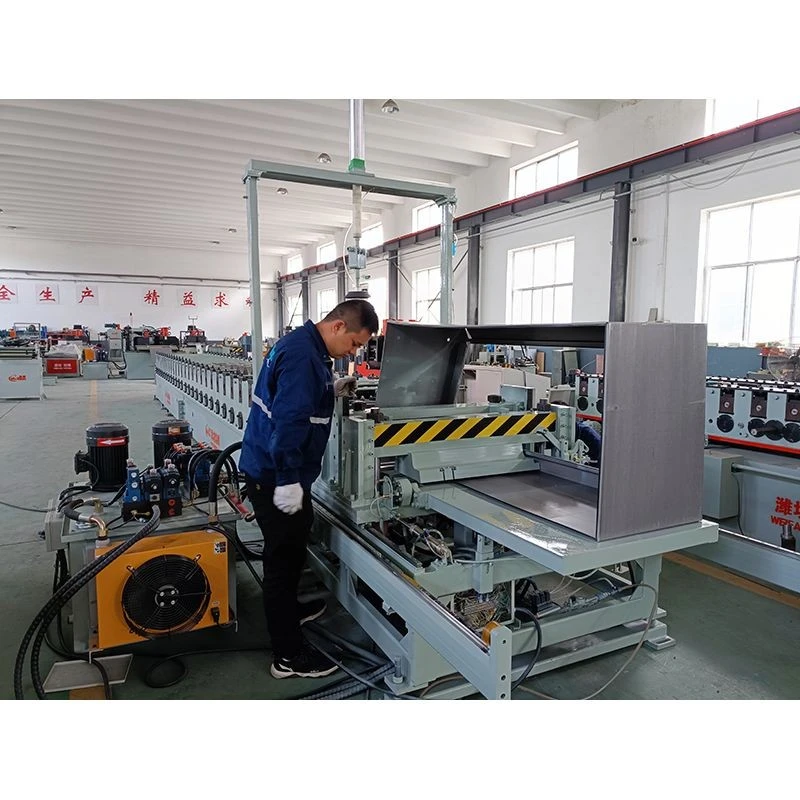

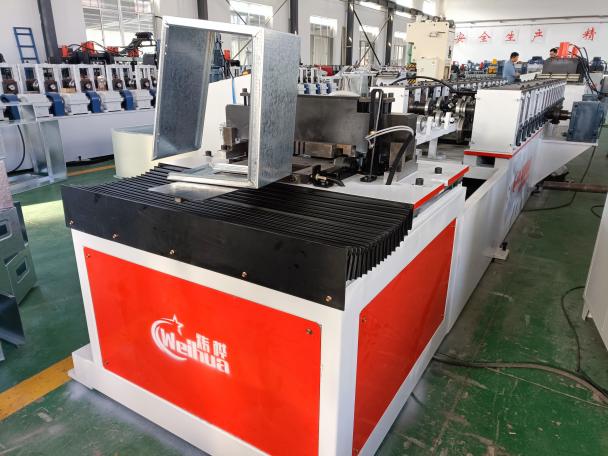

Security Cabinet Manufacturing Line
The Security Cabinet Manufacturing Line is a fully automated production line specifically designed for one-piece molding of security cabinets. Security cabinets have extremely high requirements for sheet metal thickness (1.2-1.5mm, thicker options available), structural strength, and anti-theft performance, requiring capabilities such as pry resistance, drill resistance, and vandalism resistance. The entire line integrates processes such as uncoiling, leveling, servo feeding, continuous punching, high-precision roll forming, length cutting, and automatic bending. Specifications range from 300×400 to 1800×2000 mm (customizable), with adjustable depth, suitable for mass production of various security cabinets.
Technical Specifications
|
Product Name |
Security Cabinet Manufacturing Line |
|
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
|
Material Thickness |
1.2→1.5mm (customizable) |
|
|
Production Speed |
1-2 pieces/minute |
|
|
Production Specifications |
Box Size: 300*400--1800*2000 (customizable) |
|
|
Box Depth |
Customizable |
|
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
|
Air Source |
0.5 m³/Min; Pressure: 0.7MPa |
|
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
|
Drive Motor |
Variable frequency motor drive |
|
|
Total Motor Power |
25kW |
|
|
Cutting Die Material |
Cr12MoV |
|
|
Transmission Mode |
Gearbox |
|
|
Cutting Method |
Hydraulic cutting |
|
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
|
Operating System |
Touchscreen HMI |
|
|
Electrical Control |
Mitsubishi PLC program control |
|
|
Footage Space |
28*2*3 meters (length×width×height) |
|
Product Advantages
Heavy-duty structural design to meet high security requirements
Security cabinets have stringent requirements for structural strength. This production line uses a reinforced frame and heavy-duty roller assembly, specifically designed for plates 1.2-1.5mm thick and above. Gearbox transmission ensures stable forming of thick plates, and the seamless, one-piece molding provides a solid structural foundation for achieving high security levels.
Pre-set anti-theft lock installation structure
The stamping system can be pre-set with security cabinet-specific structural features according to customer anti-theft level requirements, including: multi-point bolt mounting holes, anti-drill plate fixing holes, hinge reinforcement holes, detachable door panel mounting holes, and heavy object anchoring holes. The hole positions are precisely configured according to different anti-theft level standards, eliminating the need for secondary drilling and preserving the integrity of the cabinet structure.
Seamless one-piece molding, eliminating weak points for prying
Security cabinet standards require that there be no exploitable pry points on any of the six sides of the cabinet. This production line uses a one-time forming process to directly roll and bend the whole board into a U-shaped cabinet. The four corners are continuous metal structures without welds, eliminating the weak point of the weld points in the traditional splicing method, and significantly improving the cabinet's resistance to damage.

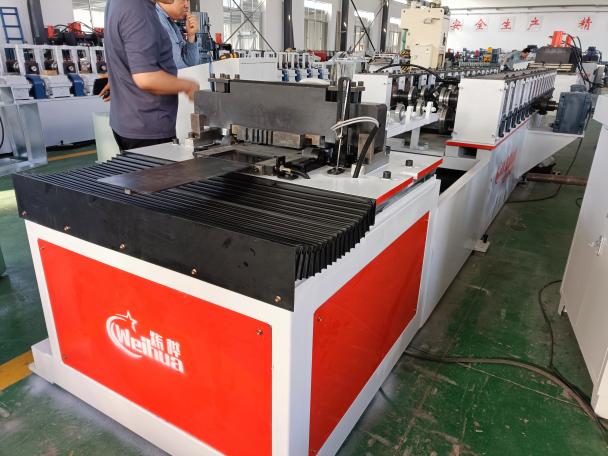

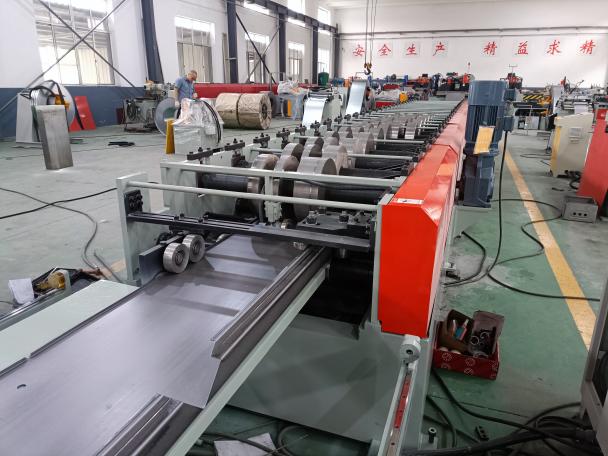

Factory photos

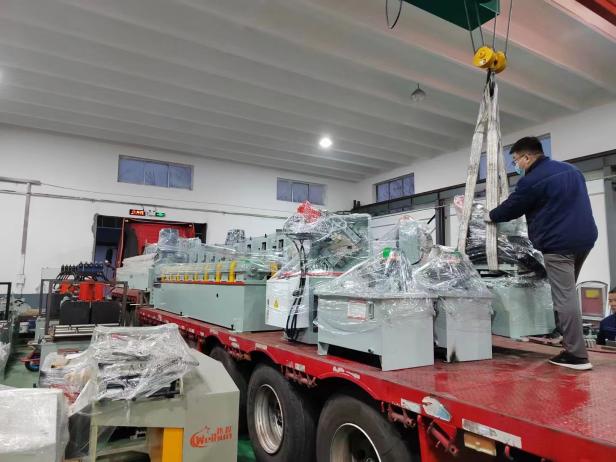

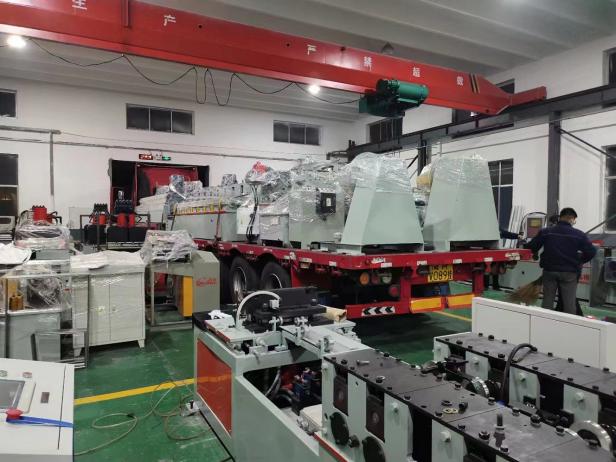

Shipping photos
Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: What is the difference between a security cabinet production line and a regular safe production line?
A: Both belong to the same product category, but the security cabinet production line is a broader version of the safe production line. Security cabinets cover a wider range of products (safes, gun cabinets, vault doors, deposit boxes, etc.), while the safe production line mainly targets safes for banks and homes. Security cabinet production lines offer greater flexibility in hole configuration, allowing for quick switching between different security products' lock mounting hole and reinforcement structure requirements.
