Security Cabinet Manufacturing Line
The security cabinet manufacturing equipment is the core forming machine of the security cabinet production line, specifically designed to directly process steel strips into the four-sided frame of the security cabinet body. Security cabinets encompass high-security protection products such as safes, gun cabinets, vault doors, and deposit boxes, demanding extremely high equipment rigidity, forming precision, and thick plate processing capabilities. This equipment adopts a heavy-duty frame structure, equipped with a servo control system and a Mitsubishi PLC touchscreen human-machine interface. It requires only one operator, has a production speed of 1-2 cabinets per minute, and a daily output of 800-1200 units. It is suitable for one-time forming manufacturing of various types of security cabinets.
Technical Specifications
|
Product Name |
Security Cabinet Manufacturing Line |
|
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
|
Material Thickness |
1.2→1.5mm (customizable) |
|
|
Production Speed |
1-2 pieces/minute |
|
|
Production Specifications |
Box Size: 300*400--1800*2000 (customizable) |
|
|
Box Depth |
Customizable |
|
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
|
Air Source |
0.5 m³/Min; Pressure: 0.7MPa |
|
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
|
Drive Motor |
Variable frequency motor drive |
|
|
Total Motor Power |
25kW |
|
|
Cutting Die Material |
Cr12MoV |
|
|
Transmission Mode |
Gearbox |
|
|
Cutting Method |
Hydraulic cutting |
|
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
|
Operating System |
Touchscreen HMI |
|
|
Electrical Control |
Mitsubishi PLC program control |
|
|
Footage Space |
28*2*3 meters (length×width×height) |
|
Product Advantages
The equipment is designed to meet the highest anti-theft standards.
The equipment design fully references international standards. The frame and roller assembly are rigidly designed according to the sheet metal thickness required for the highest anti-theft level. If customers need to produce different levels of products, they only need to replace the sheet metal with the corresponding thickness; the equipment's load-bearing capacity requires no secondary modification.
Integrated pre-set anti-vandalism features
The stamping system can be pre-set with corresponding structural features according to different uses of security products: safes have pre-set bolt mounting holes and heavy object anchoring holes; gun cabinets have pre-set double-lock mounting holes, gun holder fixing holes, and ammunition divider mounting positions. One machine can quickly adapt to the structural requirements of different products by changing the mold.
High precision cutting of thick plates, no gaps at the four corners
The four corners of the security cabinet have a continuous bending structure without welds; the cutting precision determines the gap at the four corner joints. The equipment adopts a hydraulic cutting method, and the cutting mold is made of Cr12MoV material. The cutting dimension tolerance is ≤±0.5mm (length ≤1000mm), ensuring that the four corners of the cabinet are tightly joined without gaps and that the cabinet has good squareness, providing a high-precision foundation for subsequent door panel installation and lock debugging.

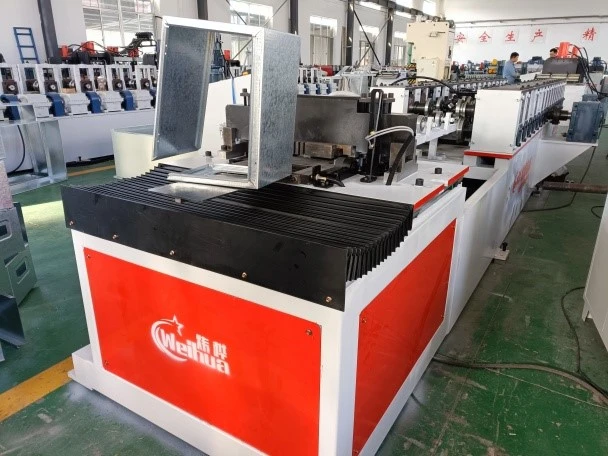

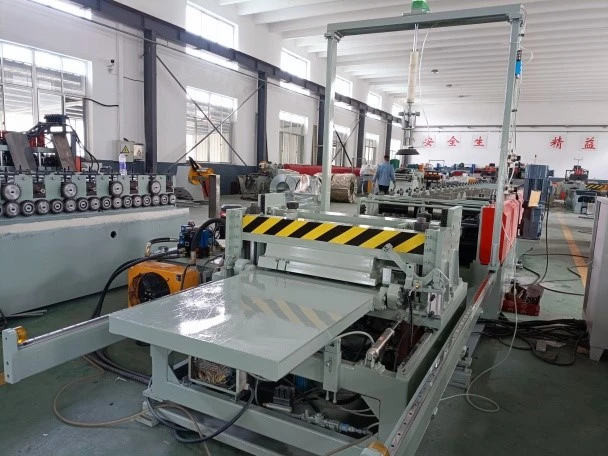

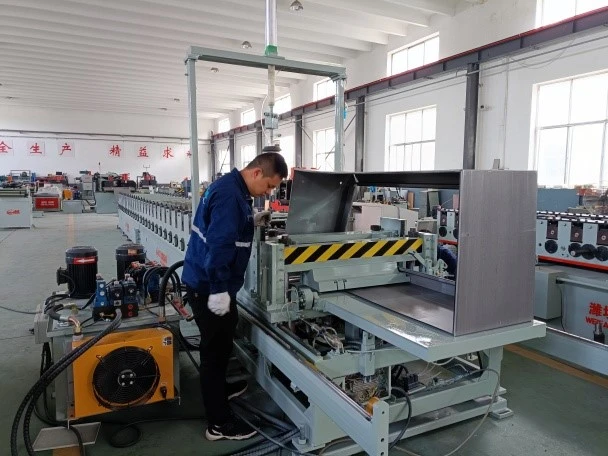

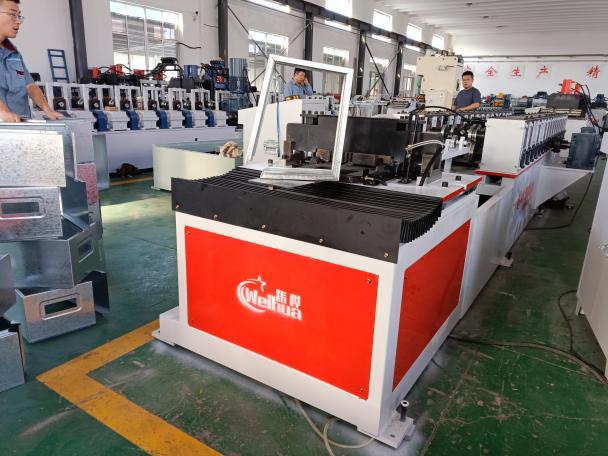

Factory photos

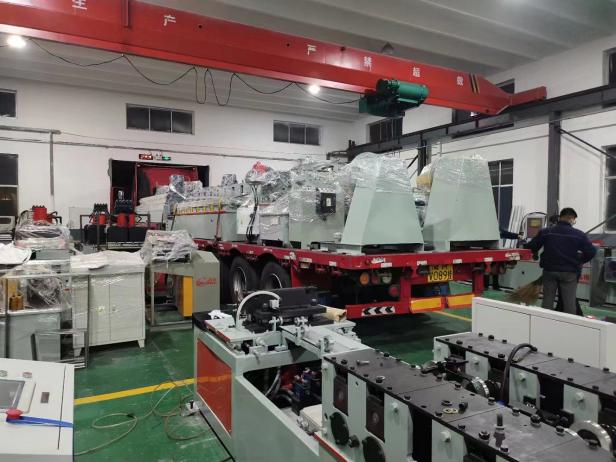

Shipping photos

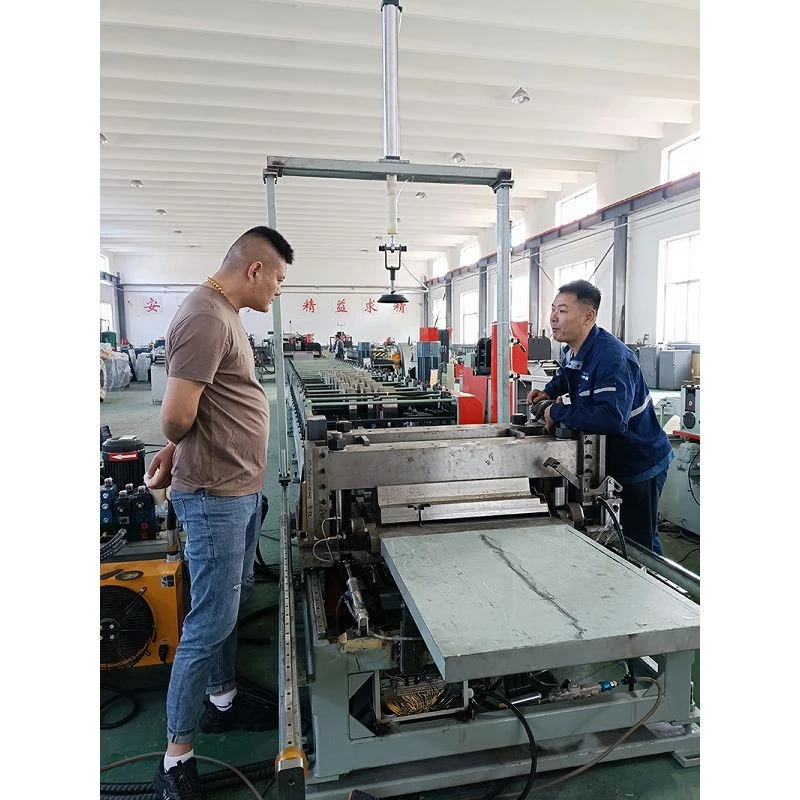

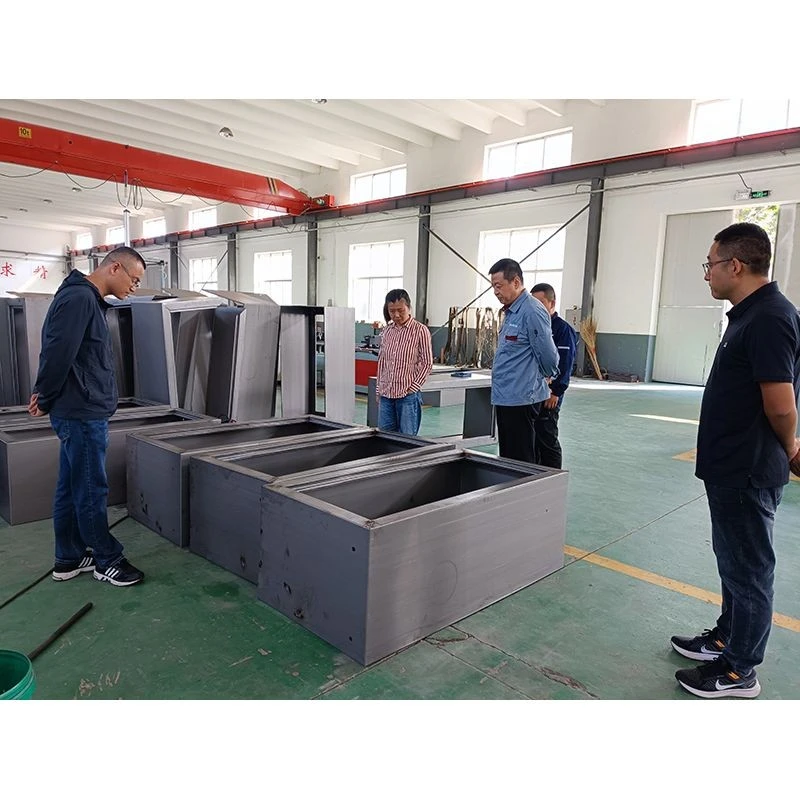

Customer visit
FAQ
Q: Are you a factory or a trading company?
A: We are a factory located in Weifang, China. It possesses over twenty sets of advanced equipment, including a new precision machining center, NC lathes, CNC wire EDM machines, and a large automotive profile bending test platform. You are welcome to visit our factory at any time.
Q: Are the security cabinet manufacturing equipment and safe manufacturing equipment the same machine?
A: The main structure and processing capabilities are the same. The main difference lies in the mold configuration and parameter presets. The stamping dies equipped with the security cabinet manufacturing equipment can cover hole configurations for various products such as safes, gun cabinets, and deposit boxes, making it more applicable. The safe manufacturing equipment focuses on processing safes and gun cabinets. The equipment itself can switch products by changing molds and adjusting parameters.
Q: Does the cabinet produced by the equipment require additional welding?

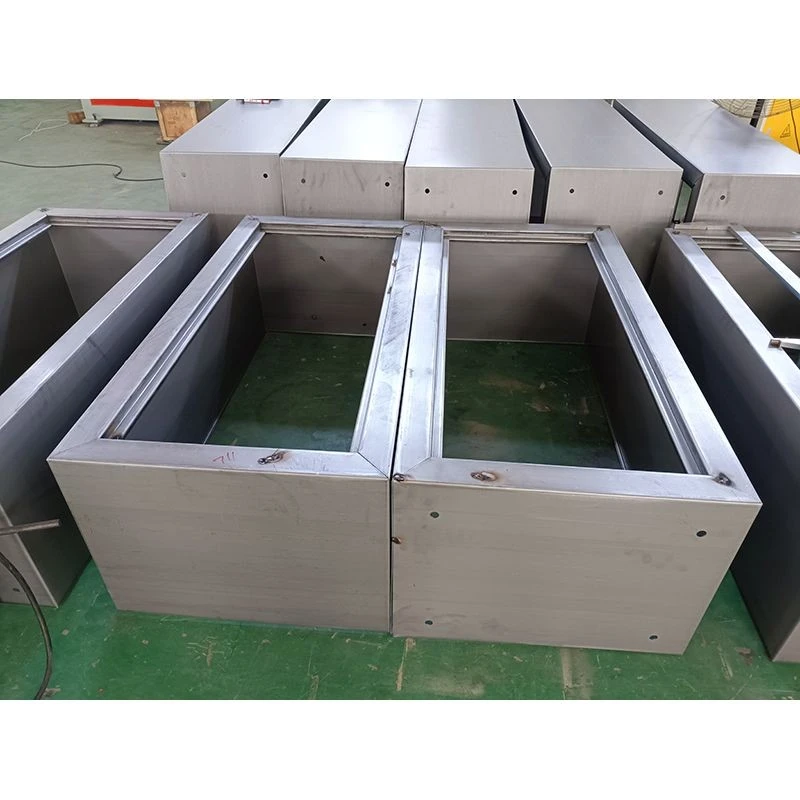

A: The equipment directly produces an I-shaped frame with continuous metal structures at the four corners, requiring no welding. Only the back panel and door panel need to be assembled subsequently.
