Safe Roll Forming Machine

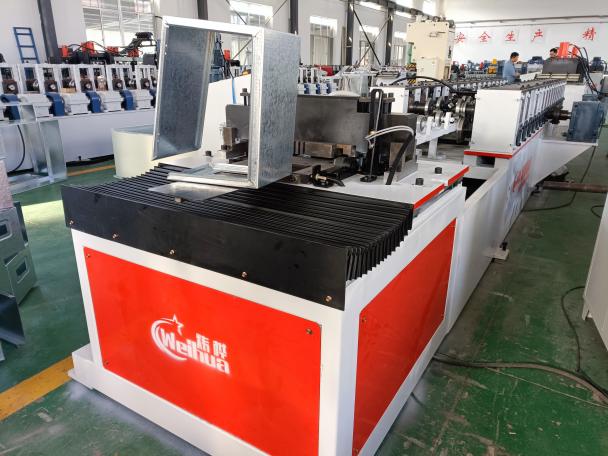

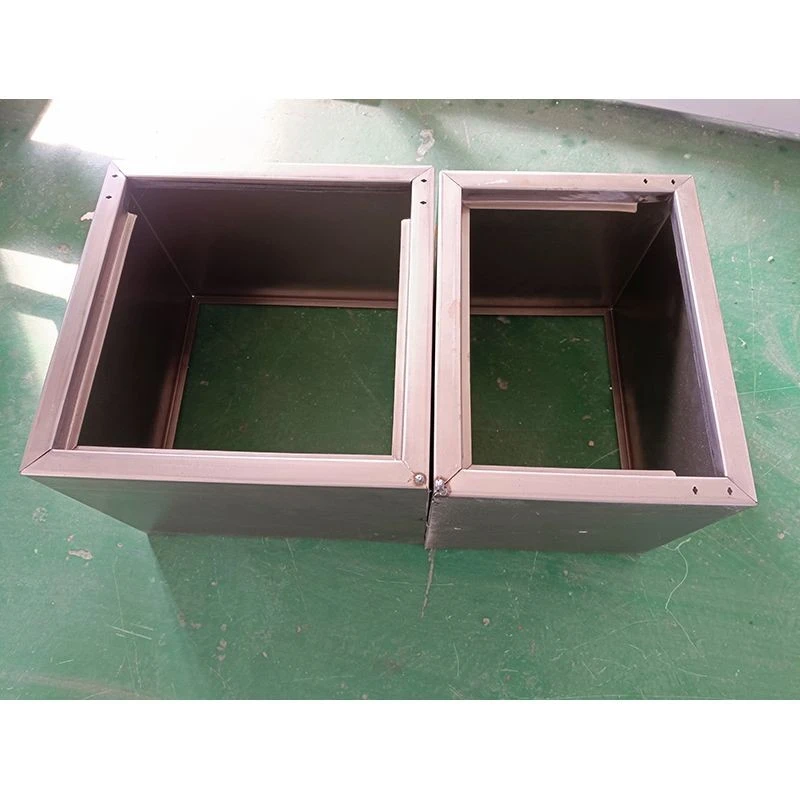

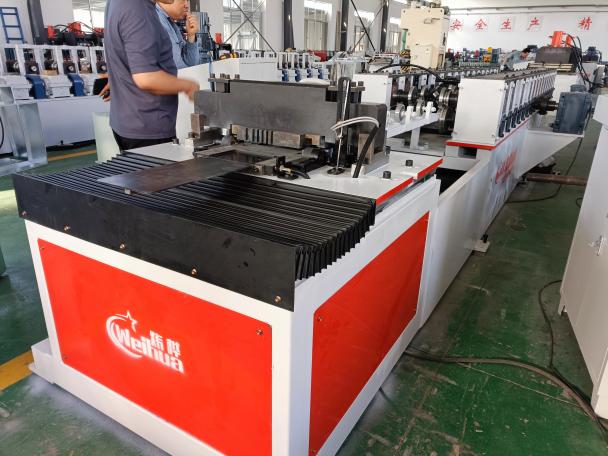

The Safe Roll Forming Machine is the core rolling equipment in a safe production line. It is specifically designed to continuously form the four-sided frame outline of a safe by progressively bending steel strips through multiple passes. Safes have much higher requirements for sheet metal thickness (1.2-1.5mm, custom thicknesses available), structural strength, and forming precision than ordinary cabinets. The equipment adopts a heavy-duty frame structure and is synchronously driven by a gearbox, ensuring uniform deformation and controllable springback of thick plates during high-speed operation. The equipment integrates continuous punching, high-precision cold bending, hydraulic cutting, and automatic bending, and is equipped with a servo control system and a Mitsubishi PLC touchscreen human-machine interface.
Technical Specifications
|
Product Name |
Safe Roll Forming Machine |
|
|
Material Specifications |
Q235 cold-rolled strip steel, galvanized strip steel |
|
|
Material Thickness |
1.2→1.5mm (customizable) |
|
|
Production Speed |
1-2 pieces/minute |
|
|
Production Specifications |
Box Size: 300*400--1800*2000 (customizable) |
|
|
Box Depth |
Customizable |
|
|
Voltage Parameters |
380V/415V, 50Hz, 3-phase |
|
|
Air Source |
0.5 m³/Min; Pressure: 0.7MPa |
|
|
Roll Material |
Cr12 CNC machined; quenched to HRC58°-60° hardness |
|
|
Drive Motor |
Variable frequency motor drive |
|
|
Total Motor Power |
25kW |
|
|
Cutting Die Material |
Cr12MoV |
|
|
Transmission Mode |
Gearbox |
|
|
Cutting Method |
Hydraulic cutting |
|
|
Cutting Dimension Tolerance |
≤ ±0.5mm (Length ≤1000mm) |
|
|
Operating System |
Touchscreen HMI |
|
|
Electrical Control |
Mitsubishi PLC program control |
|
|
Footage Space |
28*2*3 meters (length×width×height) |
|
Product Advantages
Heavy-duty main unit boasts high rigidity, ensuring stable and reliable thick plate forming.
Safes commonly use 1.2-1.5mm thick plates, requiring high rigidity from the equipment. The main unit base utilizes a reinforced welded square steel structure, the frame employs an integral fixed archway, the side plates are made of thickened steel plates, and all supporting components use high-precision bearings. This excellent overall rigidity effectively suppresses vibration and deformation during the thick plate forming process, resulting in stable cabinet dimensions and precise angles after forming.
Cr12 hardened rollers offer long wear resistance and prevent damage to the plate surface.
The forming rollers are CNC machined from Cr12 mold steel. After overall quenching, the hardness reaches HRC58°-60°, and the surface roughness is precision ground to above 0.8, exhibiting high strength, high hardness, and excellent wear resistance. Even under high-load operation with a daily production of thousands of units, the roller surface is less prone to wear pits, effectively protecting the galvanized layer of the plate surface from scratches and indentations, resulting in a high-quality finished product appearance.
Gearbox Synchronous Drive Prevents Cabinet Twisting and Deformation
All forming rollers are synchronously driven by a gearbox, ensuring precise transmission ratios and eliminating slippage and cumulative errors. Compared to chain or belt drives, gearboxes have a stronger load-bearing capacity, ensuring that the linear speed on both sides of the steel belt is completely consistent. This results in a symmetrical cabinet with equal diagonal dimensions after forming, eliminating twisting and deviation problems caused by asynchronous speeds.

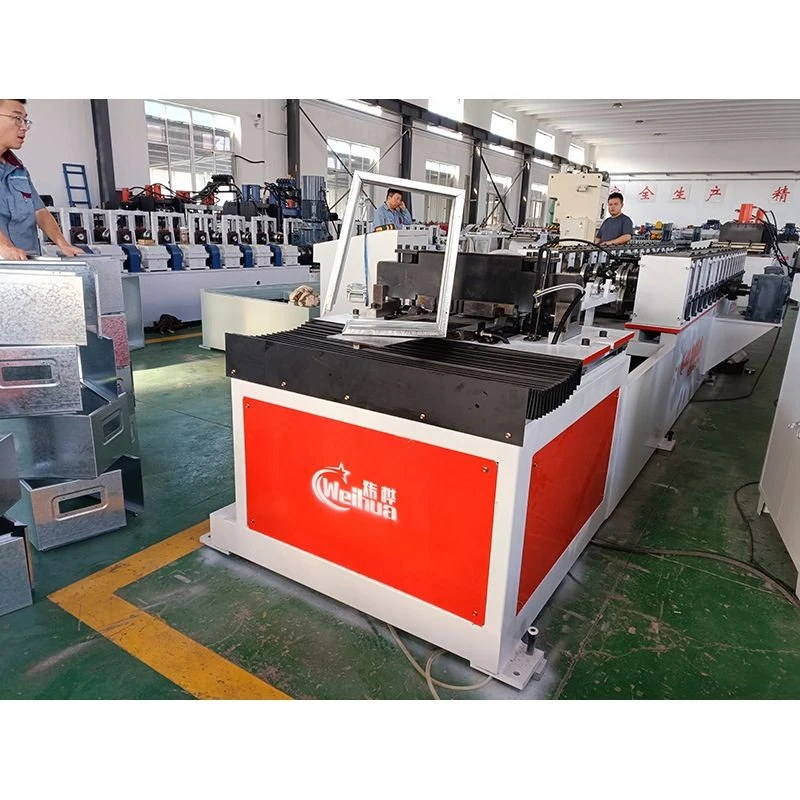

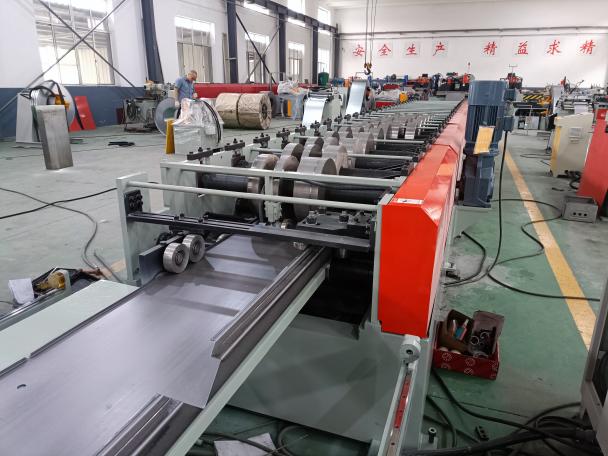

Factory photos
